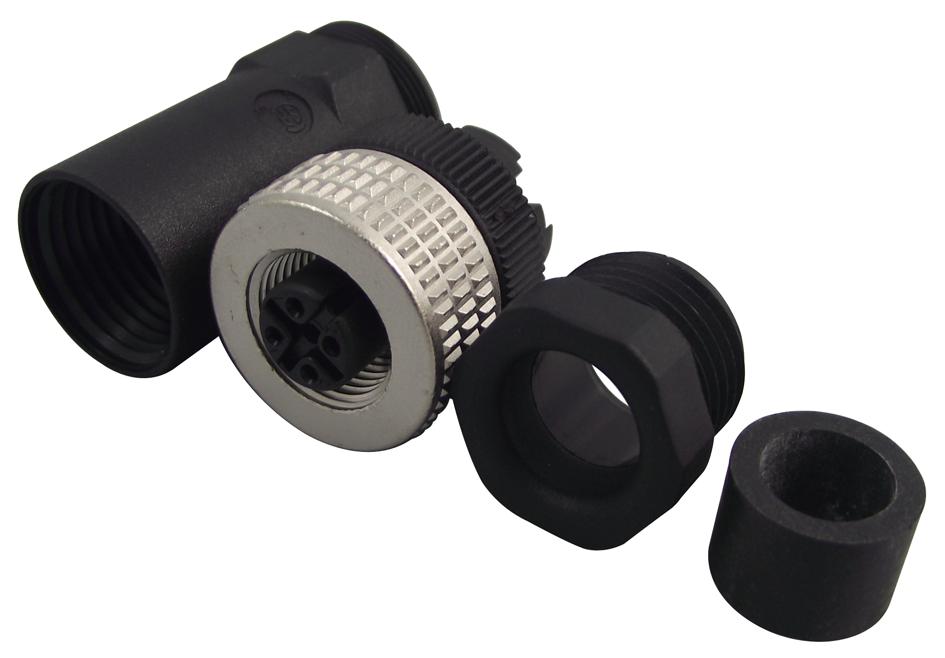

HIRSCHMANN - ELKA 4012 PG9 - Circular Connector, E Series M12, Cable Mount Receptacle, 4 Contacts, Screw Socket
- Product Range: E Series M12
- Circular Connector Shell Style: Cable Mount Receptacle
- No. of Contacts: 4Contacts
- Circular Contact Type: Screw Socket
- Coupling Style: -
- Connector Body Material: Nylon (Polyamide) Body
- Connector Body Plating: -
- Contact Material: Brass
- Contact Plating: Tin
- SVHC: Lead (27-Jun-2018)
- Approval Bodies: UL
- Cable Diameter Max: 8mm
- Cable Diameter Min: 6mm
- Colour: Black
- Conductor Area CSA: 0.75mm²
- Connector Insert Type: M12-4
- Connector Mounting: Cable Mount
- Connector Shell Size: M12
- Connector Type: Circular Industrial
- Contact Gender: Socket
- Contact Plating: Tin Plated Contacts
- Contact Termination: Screw
- Contact Termination Type: Screw
- Current Rating: 4A
- Flammability Rating: UL94V-2
- Gender: Receptacle
- IP / NEMA Rating: IP67
- Operating Temperature Max: +90°C
- Operating Temperature Min: -25°C
- Standard: IEC 61076-2-101/IEC 60947-5-2
- Voltage Rating V DC: 250V
- Voltage Rating VAC: 250V
