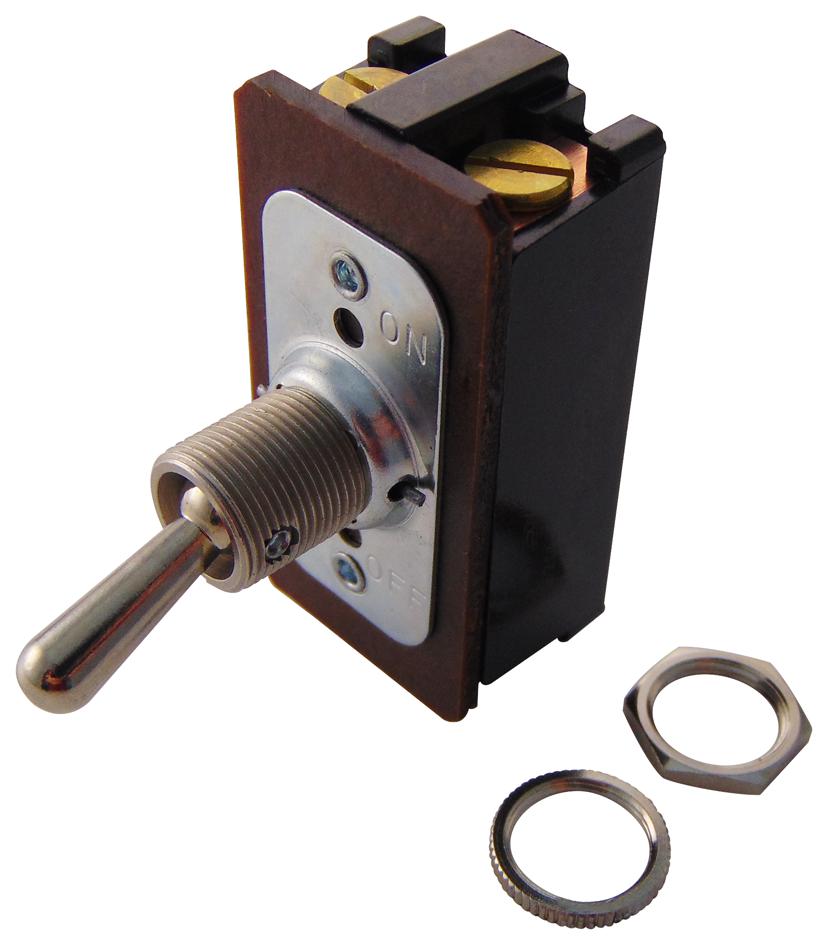

CARLING - EK204-73 - Toggle Switch, On-Off, DPST, Non Illuminated, EK, Panel Mount, 20 A
- Switch Operation: On-Off
- Contact Configuration: DPST
- Illumination: Non Illuminated
- Product Range: EK Series
- Contact Current Max: 20A
- Switch Mounting: Panel
- Contact Voltage AC Nom: 125V
- Switch Terminals: Screw
- Contact Voltage DC Nom: 125V
- SVHC: No SVHC (27-Jun-2018)
- Actuation Type: Bat
- Approval Bodies: CSA
- Approval Category: UL Recognised
- Bush Thread Length: 11.9mm
- Contact Current @ Contact Voltage AC Max: 10A
- Contact Current @ Contact Voltage DC Max: 20A
- Contact Current AC Max: 10A
- Contact Current DC Max: 10A
- Contact Voltage AC Max: 250VAC
- Contact Voltage DC Max: 250VDC
- External Depth: 22.2mm
- External Length / Height: 54mm
- External Width: 25.4mm
- Height: 54mm
- Lever Length: 16.7mm
- Operating Temperature Max: 65.6°C
- Operating Temperature Min: -17.8°C
- Panel Cutout Diameter: 12.7mm
- Termination Method: Screw
- Thread Size: 15/32" x 32 NS
