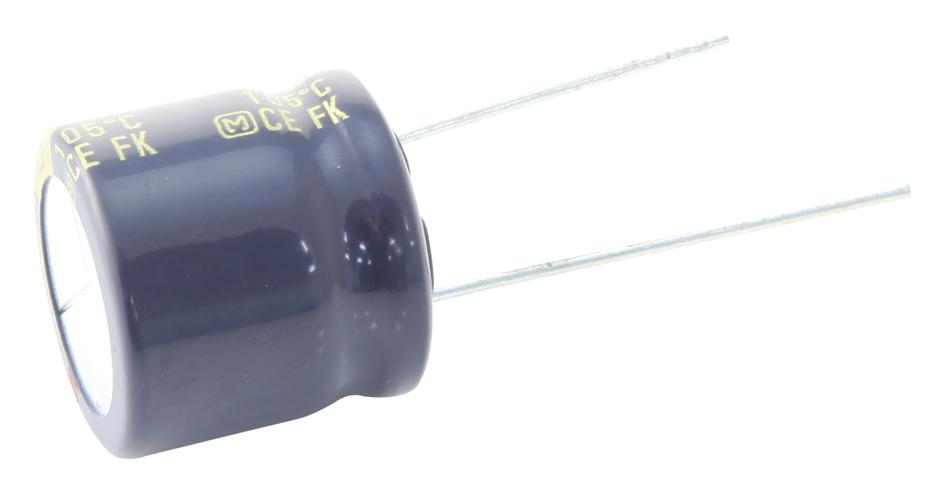

PANASONIC - EEUFK1V122S - Electrolytic Capacitor, 1200 µF, 35 V, ± 20%, Radial Leaded, 5000 hours @ 105°C, Polar
- Capacitance: 1200µF
- Voltage Rating: 35V
- Product Range: FK Series
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Radial Leaded
- Diameter: 18mm
- Lead Spacing: 7.5mm
- Height: 15mm
- Operating Temperature Min: -55°C
- Operating Temperature Max: 105°C
- Lifetime @ Temperature: 5000 hours @ 105°C
- ESR: -
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 20%
- External Length / Height: 15mm
- Impedance: 0.036ohm
- Impedance Frequency: 100kHz
- Impedance Temperature: 20°C
- Lead Diameter: 0.8mm
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +105°C
- Ripple Current @ 105°C to 125°C: 2060mA
- Ripple Current Frequency: 100kHz
- Ripple Current Temperature: 105°C
