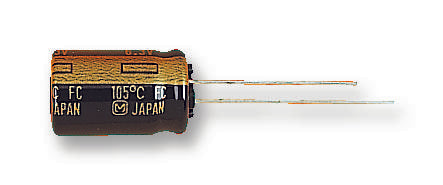

PANASONIC - EEUFC2A220 - Electrolytic Capacitor, 22 µF, 100 V, ± 20%, Radial Leaded, 2000 hours @ 105°C, Polar
- Capacitance: 22µF
- Voltage Rating: 100V
- Product Range: FC Series
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Radial Leaded
- Diameter: 8mm
- Lead Spacing: 3.5mm
- Height: 11.5mm
- Operating Temperature Min: -55°C
- Operating Temperature Max: 105°C
- Lifetime @ Temperature: 2000 hours @ 105°C
- ESR: -
- Automotive Qualification Standard: AEC-Q200
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 20%
- External Length / Height: 11.5mm
- Impedance: 0.55ohm
- Impedance Frequency: 100kHz
- Impedance Temperature: 20°C
- Lead Diameter: 0.6mm
- No. of Pins: 2Pins
- Operating Life Temperature: 105°C
- Operating Temperature Range: -55°C to +105°C
- Operating life Time: 3000h
- Ripple Current AC: 260mA
- Ripple Current Frequency: 100kHz
- Ripple Current Temperature: 105°C
- Tolerance +: 20%
- Tolerance -: 20%
- Voltage Rating V DC: 100V
