Condensatoren
EEUFC1A562 CAP, 5600µF, 10V, 20% PANASONIC
Survolez l'image pour zoomer Cliquez sur l'image pour zoomer
EEUFC1A562 CAP, 5600µF, 10V, 20% PANASONIC

EEUFC1A562 Cap, 5600µF, 10V, 20% Panasonic

PANASONICUGS :EEUFC1A562 Code de commande:9691995
Prix:
€3,13

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1356 unité)

description

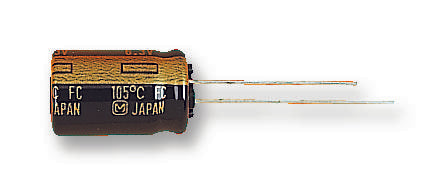

PANASONIC - EEUFC1A562 - Electrolytic Capacitor, 5600 µF, 10 V, ± 20%, Radial Leaded, 5000 hours @ 105°C, Polar

  • Capacitance: 5600µF
  • Voltage Rating: 10V
  • Product Range: FC Series
  • Capacitance Tolerance: ± 20%
  • Capacitor Terminals: Radial Leaded
  • Diameter: 16mm
  • Lead Spacing: 7.5mm
  • Height: 25mm
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 105°C
  • Lifetime @ Temperature: 5000 hours @ 105°C
  • ESR: -
  • Automotive Qualification Standard: AEC-Q200
  • SVHC: No SVHC (15-Jan-2019)
  • Capacitance Tolerance ±: ± 20%
  • External Length / Height: 25mm
  • Impedance: 0.022ohm
  • Impedance Frequency: 100kHz
  • Impedance Temperature: 20°C
  • Lead Diameter: 0.8mm
  • No. of Pins: 2Pins
  • Operating Life Temperature: 105°C
  • Operating Temperature Range: -55°C to +105°C
  • Operating life Time: 3000h
  • Ripple Current AC: 2555mA
  • Ripple Current Frequency: 100kHz
  • Ripple Current Temperature: 105°C
  • Tolerance +: 20%
  • Tolerance -: 20%
  • Voltage Rating V DC: 10V
