Ee-SY410 Opto Switch, Reflective Omron

OMRONUGS :EE-SY410 Code de commande:1173631

Prix:
Prix ​​promotionnel€9,08

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (101 unité)

Documents et téléchargements

description

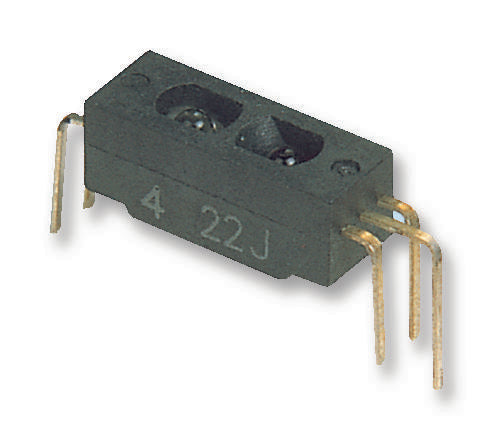

OMRON - EE-SY410 - Reflective Photo Interrupter, Photo, Optical IC, Through Hole, 5 mm, 50 mA, 4 Vr, 1.2 Vf

  • Sensor Output: Photo / Optical IC
  • Sensor Mounting: Through Hole
  • Sensing Distance: 5mm
  • Forward Current If: 50mA
  • Reverse Voltage Vr: 4V
  • Collector Emitter Voltage V(br)ceo: -
  • Forward Voltage: 1.2V
  • Product Range: EE-SY410 Series
  • External Depth: 4.6mm
  • External Length / Height: 8.8mm
  • External Width: 17.2mm
  • Fall Time tf: 3µs
  • Forward Current If(AV): 20mA
  • Height: 8.8mm
  • Input Current: 20mA
  • No. of Channels: 1Channels
  • No. of Pins: 5Pins
  • Operating Temperature Max: 75°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +75°C
  • Optocoupler Output Type: Phototransistor
  • Output Voltage: 28V
  • Pitch Spacing: 15mm
  • Rise Time: 20µs
  • Row Pitch: 17mm
  • Voltage Rating VAC: 4V
  • Voltage Vcc Max: 16V
  • Voltage Vcc Min: 4.5V
