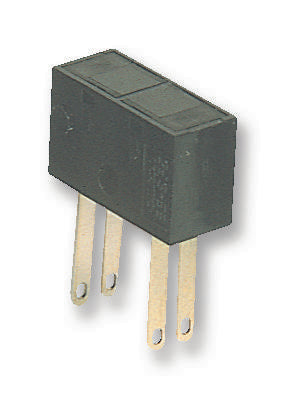

OMRON - EE-SF5 - Reflective Photo Interrupter, EE-SF5 Series, Phototransistor, Panel Mount, 5 mm, 50 mA, 4 Vr
- Sensor Output: Phototransistor
- Sensor Mounting: Panel / Chassis
- Sensing Distance: 5mm
- Forward Current If: 50mA
- Reverse Voltage Vr: 4V
- Collector Emitter Voltage V(br)ceo: 30V
- Forward Voltage: 1.2V
- Product Range: EE-SF5(-B) Series
- External Depth: 5.7mm
- External Length / Height: 17.7mm
- External Width: 13mm
- Forward Current If(AV): 50mA
- Input Current: 30mA
- No. of Channels: 1Channels
- No. of Pins: 4Pins
- Operating Temperature Max: 80°C
- Operating Temperature Min: -25°C
- Operating Temperature Range: -25°C to +80°C
- Optocoupler Output Type: Phototransistor
- Output Voltage: 30V
- Power Dissipation Pd: 100mW
- Reflective Sensing Distance: 5mm
