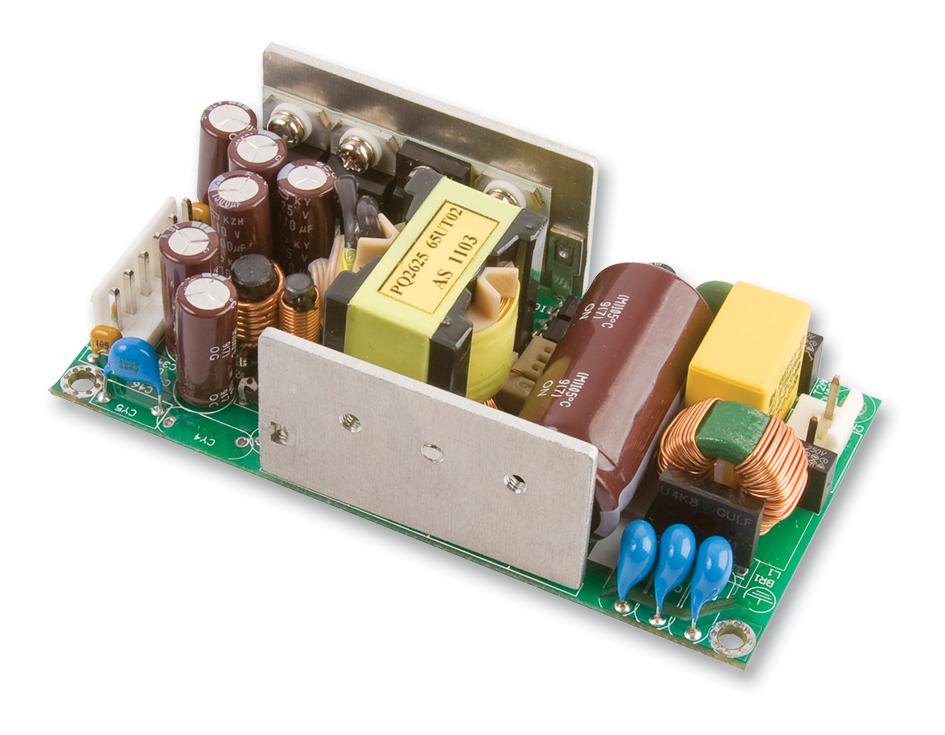

XP POWER - ECP60UT02 - AC/DC Open Frame Power Supply (PSU), ITE & Medical, 3 Output, 60 W, 85V AC to 264V AC
- No. of Outputs: 3 Output
- Power Rating (Covection Cooling): 60W
- Power Rating (Forced Cooling): -
- Input Voltage VAC: 85V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Output Voltage - Output 1: 5V
- Output Current - Output 1: 7A
- Output Voltage - Output 2: 15V
- Output Current - Output 2: 2A
- Output Voltage - Output 3: -15V
- Output Current - Output 3: 300mA
- Output Voltage - Output 4: -
- Current, Output 4: -
- Product Range: ECP Series
- SVHC: No SVHC (15-Jan-2018)
- Applications: Medical
- Approvals / Standards: CSA 22.2 No. 60601, EN 60601, IEC 60601
- Height: 30.4mm
- Input Voltage: 85V AC to 264V AC
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 85V
- Length: 101.6mm
- No. of Outputs: 3Outputs
- Output Power Max: 60W
- Power Rating: 60W
- Width: 50.8mm
