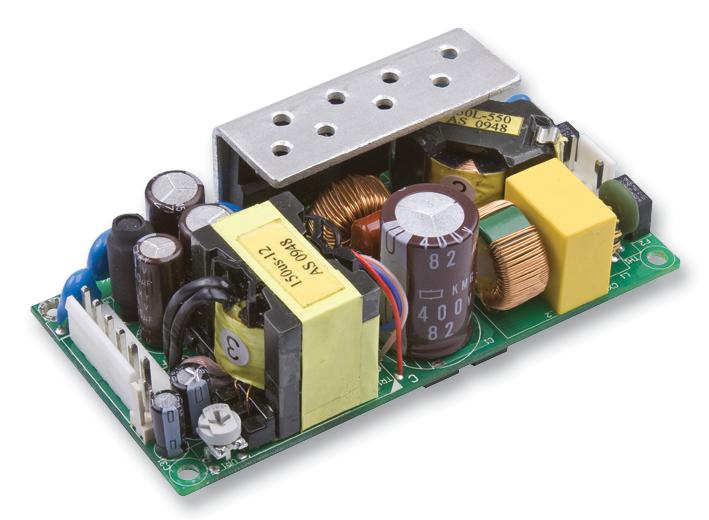

XP POWER - ECP150PS24 - AC/DC Open Frame Power Supply (PSU), ITE & Medical, 1 Output, 150W @ 10CFM, 100 W
- No. of Outputs: 1 Output
- Power Rating (Covection Cooling): 100W
- Power Rating (Forced Cooling): 150W @ 10CFM
- Input Voltage VAC: 90V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Output Voltage - Output 1: 24V
- Output Current - Output 1: 6.25A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Product Range: ECP40 Series
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: EN, IEC, UL
- Approvals / Standards: EN 60601, ES 60601, IEC 60601
- Height: 26.5mm
- Input Frequency: 63Hz
- Input Voltage: 85V AC to 264V AC
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 90V
- Length: 101.6mm
- No. of Outputs: 1Outputs
- Output Current Max: 6.25A
- Output Power Max: 150W
- Power Rating: 150W
- Power Supply Type: Open Frame
- Width: 50.8mm
