Energie
ECM40US12 POWER SUPPLY, AC-DC, MEDICAL, 12V, 3.5A XP POWER
Survolez l'image pour zoomer Cliquez sur l'image pour zoomer
ECM40US12 POWER SUPPLY, AC-DC, MEDICAL, 12V, 3.5A XP POWER

ECM40US12 Power Supply, AC-DC, Medical, 12V, 3.5A XP Power

XP POWERUGS :ECM40US12 Code de commande:1176957
Prix:
€67,54

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1199 unité)

Documents et téléchargements

Fiche produit
Fiche produit

description

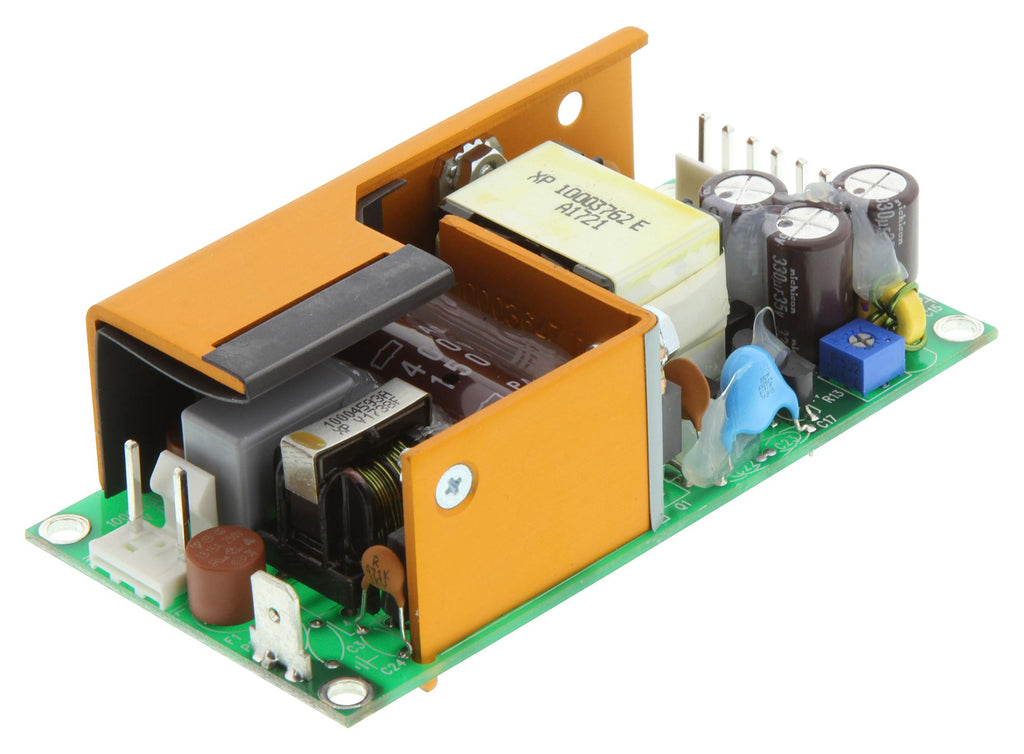

XP POWER - ECM40US12 - AC/DC Open Frame Power Supply (PSU), ITE & Medical, 1 Output, 40 W, 90V AC to 264V AC

  • No. of Outputs: 1 Output
  • Power Rating (Covection Cooling): 40W
  • Power Rating (Forced Cooling): -
  • Input Voltage VAC: 90V AC to 264V AC
  • Power Supply Output Type: Adjustable, Fixed
  • Output Voltage - Output 1: 12V
  • Output Current - Output 1: 3.5A
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Output Voltage - Output 4: -
  • Current, Output 4: -
  • Product Range: ECM Series
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: cUL, EN, IEC, UL
  • Approvals / Standards: CSA 22.2 No. 60601, EN 60601, ES 60601
  • Efficiency: 80%
  • Height: 101.6mm
  • Input Frequency: 63Hz
  • Input Voltage AC Max: 264V
  • Input Voltage AC Min: 90V
  • Leakage Current: 100µA
  • Length: 30.5mm
  • Line Regulation: 0.5%
  • Load Regulation: 1%
  • No. of Outputs: 1Outputs
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -10°C
  • Output Current Max: 3.5A
  • Output Power Max: 40W
  • Output Ripple and Noise Voltage pk-pk: 1%
  • Power Supply Type: Switch Mode
  • Width: 50.8mm
