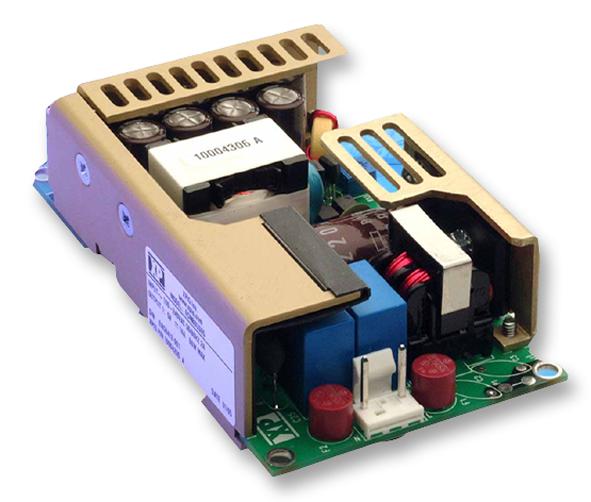

XP POWER - ECM100UT31 - AC/DC Open Frame Power Supply (PSU), ITE & Medical, 3 Output, 100W @ 5CFM, 75 W
- No. of Outputs: 3 Output
- Power Rating (Covection Cooling): 75W
- Power Rating (Forced Cooling): 100W @ 5CFM
- Input Voltage VAC: 90V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Output Voltage - Output 1: 5V
- Output Current - Output 1: 10A
- Output Voltage - Output 2: 12V
- Output Current - Output 2: 3A
- Output Voltage - Output 3: -12V
- Output Current - Output 3: 800mA
- Output Voltage - Output 4: -
- Current, Output 4: -
- Product Range: ECM Series
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: cUL, EN, IEC, UL
- Approvals / Standards: CSA 22.2 No. 60601, EN 60601, ES 60601
- External Depth: 30.5mm
- External Length / Height: 114.3mm
- External Width: 63.5mm
- Height: 114.3mm
- Input Current: 0.9A
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 90V
- Inrush Current: 40A
- Leakage Current: 200µA
- Length: 30.5mm
- No. of Outputs: 3Outputs
- Operating Temperature Max: 80°C
- Operating Temperature Min: 0°C
- Output Power: 100mW
- Output Power Max: 75W
- Power Rating: 100W
- Power Supply Type: Switch Mode
