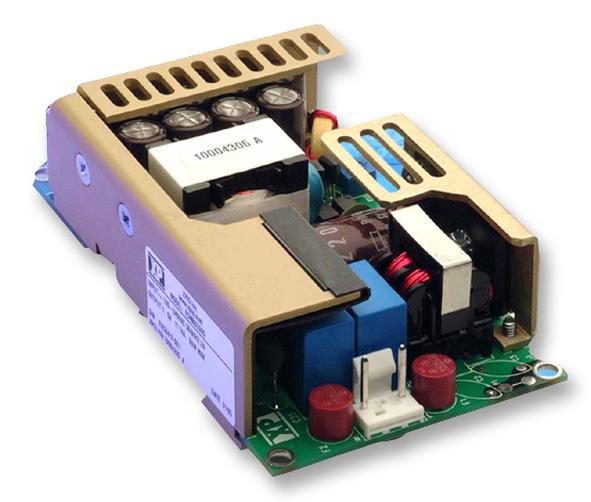

XP POWER - ECM100UQ46 - AC/DC Open Frame Power Supply (PSU), ITE & Medical, 4 Output, 100W @ 5CFM, 80 W
- No. of Outputs: 4 Output
- Power Rating (Covection Cooling): 80W
- Power Rating (Forced Cooling): 100W @ 5CFM
- Input Voltage VAC: 90V AC to 264V AC
- Power Supply Output Type: Fixed
- Output Voltage - Output 1: 5V
- Output Current - Output 1: 10A
- Output Voltage - Output 2: 15V
- Output Current - Output 2: 3A
- Output Voltage - Output 3: -15V
- Output Current - Output 3: 800mA
- Output Voltage - Output 4: 15V
- Current, Output 4: 800mA
- Product Range: ECM Series
- SVHC: No SVHC (15-Jan-2018)
- Approvals / Standards: CSA 22.2 No. 60601, EN 60601, ES 60601
- Height: 30.5mm
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 90V
- Length: 114.3mm
- No. of Outputs: 4Outputs
- Output Power Max: 80W
- Power Rating: 100W
- Width: 63.5mm
