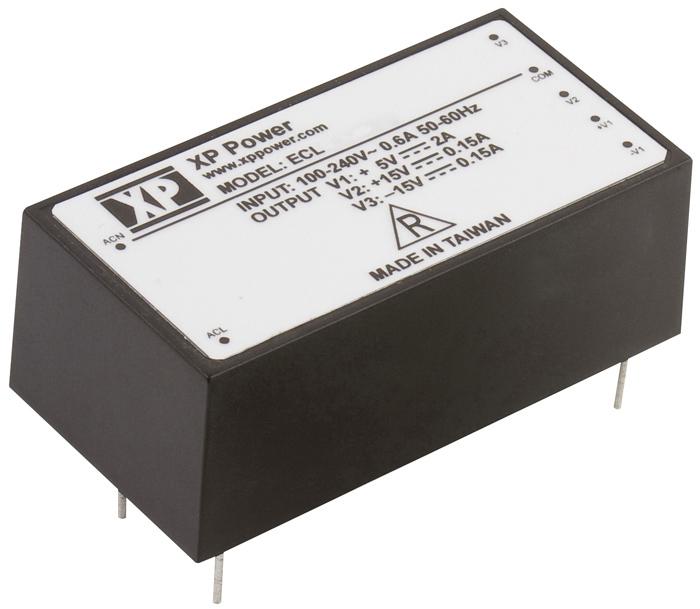

ECL10US12-E PSU, 10W, 12V, ENCAPS, PCB MOUNT XP POWER
Survolez l'image pour zoomer Cliquez sur l'image pour zoomer
ECL10US12-E PSU, 10W, 12V, ENCAPS, PCB MOUNT XP POWER

ECL10US12-E PSU, 10w, 12V, ENCAPS, Pcb Mount XP Power

XP POWERUGS :ECL10US12-E Code de commande:1435359
Prix:
€55,63

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documents et téléchargements

Fiche produit

description

XP POWER - ECL10US12-E - AC/DC PCB Mount Power Supply (PSU), ITE, 1 Output, 10 W, 12 V, 830 mA

  • No. of Outputs: 1 Output
  • Output Power Max: 10W
  • Output Voltage - Output 1: 12V
  • Output Current - Output 1: 830mA
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Power Supply Output Type: Adjustable, Fixed
  • Input Voltage VAC: 85V AC to 264V AC
  • Width: 27.2mm
  • Height: 23mm
  • Depth: 52.4mm
  • Product Range: ECL Series
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: CSA, cUL, EN, UL
  • Efficiency: 78%
  • External Depth: 23mm
  • External Length / Height: 52.41mm
  • External Width: 27.2mm
  • Frequency Max: 63Hz
  • Frequency Min: 47Hz
  • Input Current: 0.2A
  • Input Voltage AC Max: 264V
  • Input Voltage AC Min: 85V
  • Input Voltage DC Max: 370VDC
  • Input Voltage DC Min: 120VDC
  • Inrush Current: 20A
  • Length: 23mm
  • Line Regulation: 0.5%
  • Load Regulation: 1%
  • No. of Outputs: 1Outputs
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -20°C
  • Output Current Max: 830mA
  • Output Power: 10W
  • Output Ripple Voltage pk-pk: 120mV
  • Peak Output Current: 1.08A
