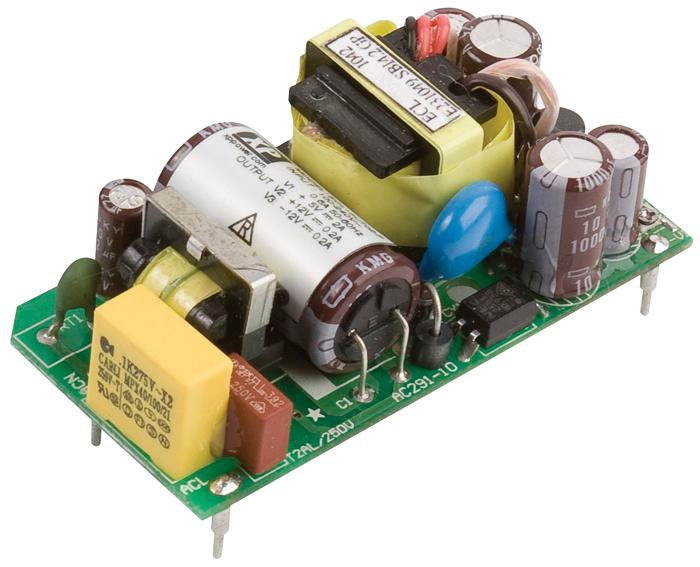

XP POWER - ECL10US09-P - AC/DC PCB Mount Power Supply (PSU), ITE, 1 Output, 10 W, 9 V, 1.1 A
- No. of Outputs: 1 Output
- Output Power Max: 10W
- Output Voltage - Output 1: 9V
- Output Current - Output 1: 1.1A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Power Supply Output Type: Adjustable, Fixed
- Input Voltage VAC: 85V AC to 264V AC
- Width: 25.4mm
- Height: 18.46mm
- Depth: 50.8mm
- Product Range: ECL Series
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CSA, cUL, EN, UL
- Efficiency: 78%
- External Depth: 22.86mm
- External Length / Height: 50.8mm
- External Width: 25.4mm
- Input Current: 0.2A
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 85V
- Inrush Current: 40A
- Length: 22.86mm
- No. of Outputs: 1Outputs
- Operating Temperature Max: 70°C
- Operating Temperature Min: 0°C
- Output Current Max: 1.1A
- Output Power: 10W
- Peak Output Current: 1.43A
- Power Rating: 10W
- Power Supply Type: Switch Mode
- Supply Voltage: 264V
- Supply Voltage Max: 264V
- Supply Voltage Min: 85V
- Supply Voltage Typ: 110V AC, 230V AC
