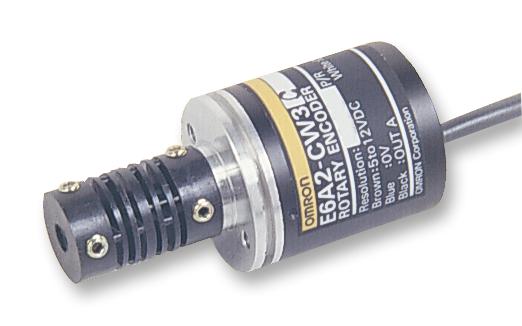

OMRON - E6A2CW3C-100 - Rotary Encoder, Optical, Incremental, 100 PPR, 0 Detents, Vertical, Without Push Switch
- Supply Voltage Min: 4.5V
- Supply Voltage Max: 13.2V
- No. of Channels: 2Channels
- Rotational Speed Max: 5000rpm
- Product Range: E6A2 Series
- Body Diameter: 25mm
- Connector Type: Cable
- Current Consumption: 20mA
- Encoder Resolution: 100
- External Length / Height: 31mm
- Lead Length: 0.5m
- No. of Pulses Per Revolution: 100
- Operating Temperature Max: 55°C
- Operating Temperature Min: -10°C
- Operating Temperature Range: -10°C to +55°C
- Pulse Output Count: 100
- Rotational Speed: 5000rpm
- Shaft Diameter: 4mm
- Shaft Length: 8mm
- Torque: 1mN-m
