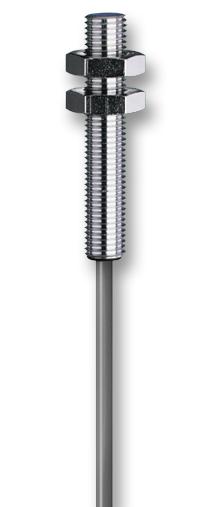

CONTRINEX GMBH - DW-AD-509-M12-390 - Inductive Proximity Sensor, 500 Series, M12, 6 mm, Analogue, , 10 Vdc to 30 Vdc, Pre-wired
- Sensing Range Max: 6mm
- Thread Size - Metric: M12
- Sensor Output: Analogue
- Supply Voltage DC Min: 10V
- Supply Voltage DC Max: 30V
- Product Range: DW -A Series
- SVHC: No SVHC (07-Jul-2017)
- Frequency Response Max: 1kHz
- IP / NEMA Rating: IP67
- Load Current Max: 20mA
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Sensing Distance Max: 6mm
- Sensing Range: 0mm to 6mm
- Sensor Input: Inductive
- Supply Voltage Range DC: 10V to 30V
- Thread Size: M12
