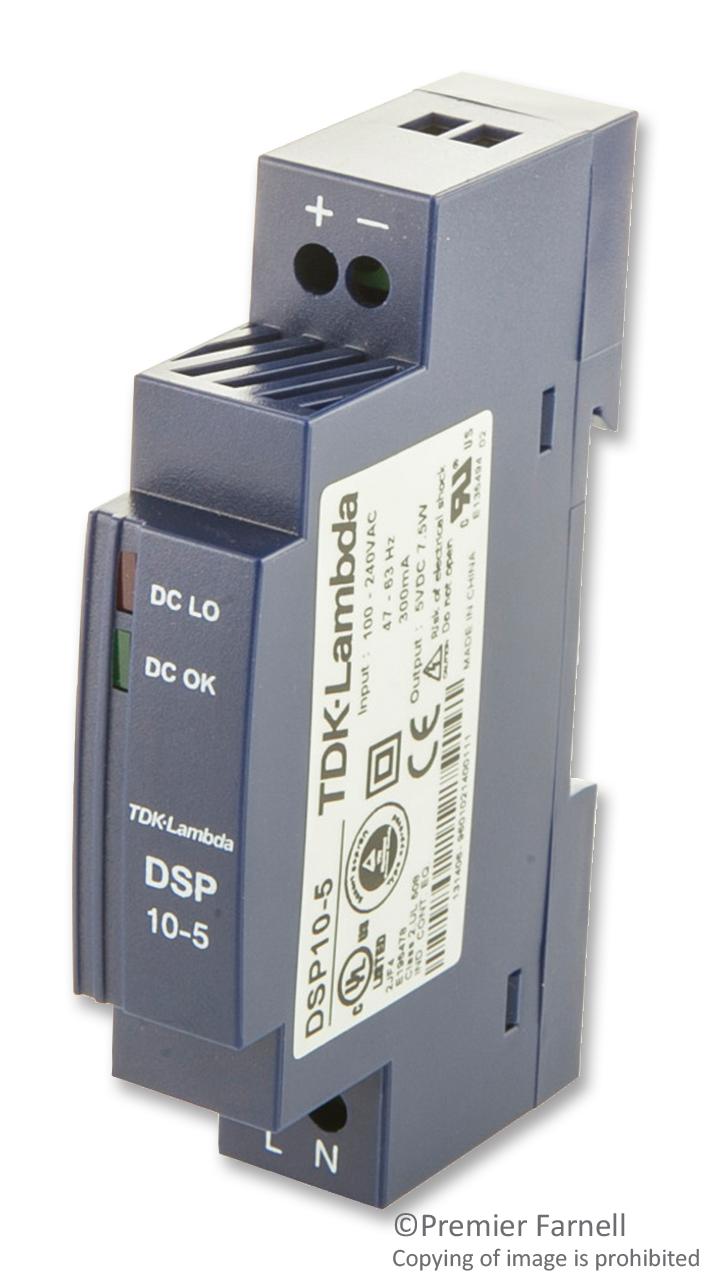

DSP10-5 PSU, DIN Rail, 5V, 1.5A, 7.5W TDK-Lambda

TDK-LAMBDAUGS :DSP10-5 Code de commande:1456473

Prix:
Prix ​​promotionnel€38,98

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (74 unité)

Documents et téléchargements

description

TDK-LAMBDA - DSP10-5 - AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 7.5 W, 5 VDC, 1.5 A

  • No. of Outputs: 1 Output
  • Output Power Max: 7.5W
  • Output Voltage - Output 1: 5VDC
  • Output Current - Output 1: 1.5A
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Output Voltage - Output 4: -
  • Current, Output 4: -
  • Input Voltage VAC: 90V AC to 264V AC
  • Power Supply Output Type: Fixed
  • Product Range: DSP Series
  • SVHC: No SVHC (15-Jan-2018)
  • Applications: Industrial
  • Approval Bodies: CE, EN, UL
  • Efficiency: 74%
  • External Depth: 55.6mm
  • External Length / Height: 91mm
  • External Width: 18mm
  • Height: 91mm
  • Input Frequency: 63Hz
  • Input Voltage AC Max: 264VAC
  • Input Voltage AC Min: 90VAC
  • Inrush Current: 30A
  • Length: 55.6mm
  • Line Regulation: 1%
  • Load Regulation: 1%
  • No. of Outputs: 1Outputs
  • Operating Temperature Max: 71°C
  • Operating Temperature Min: -25°C
  • Output Current: 1.5A
  • Output Ripple Voltage pk-pk: 50mV
  • Output Voltage: 5V
  • Output Voltage Max: 5.5V
  • Output Voltage Min: 5V
  • Output Voltage Nom.: 5V
  • Power Rating: 7.5W
  • Weight: 60g
