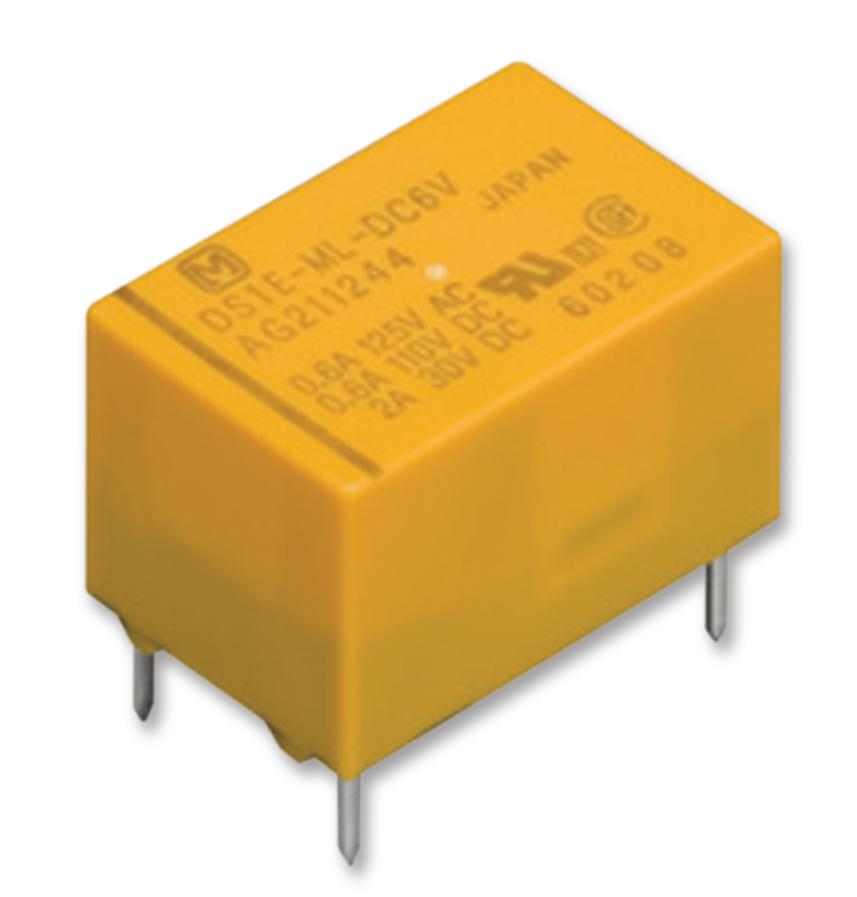

DS1E-S-DC5V Relay, Signal, SPDT, 30Vdc, 2A Panasonic

PANASONICUGS :DS1E-S-DC5V Code de commande:2103621

Prix:
Prix ​​promotionnel€13,48

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (456 unité)

Documents et téléchargements

description

PANASONIC - DS1E-S-DC5V - Signal Relay, 5 VDC, SPDT, 2 A, DS, Through Hole, Non Latching

  • Coil Voltage: 5VDC
  • Contact Configuration: SPDT
  • Contact Current: 2A
  • Product Range: DS Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Relay Terminals: Solder
  • Contact Voltage VAC: -
  • Contact Voltage VDC: 30V
  • Contact Material: Silver
  • Coil Resistance: 125ohm
  • SVHC: No SVHC (07-Jul-2017)
  • Approvals & Standards: CSA, UL
  • Coil Current: 40mA
  • Coil Power Continuous: 200mW
  • Coil Voltage VDC Nom: 5V
  • Contact Current Max: 2A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 30V
  • External Depth: 15mm
  • External Height: 9.9mm
  • External Width: 9.9mm
