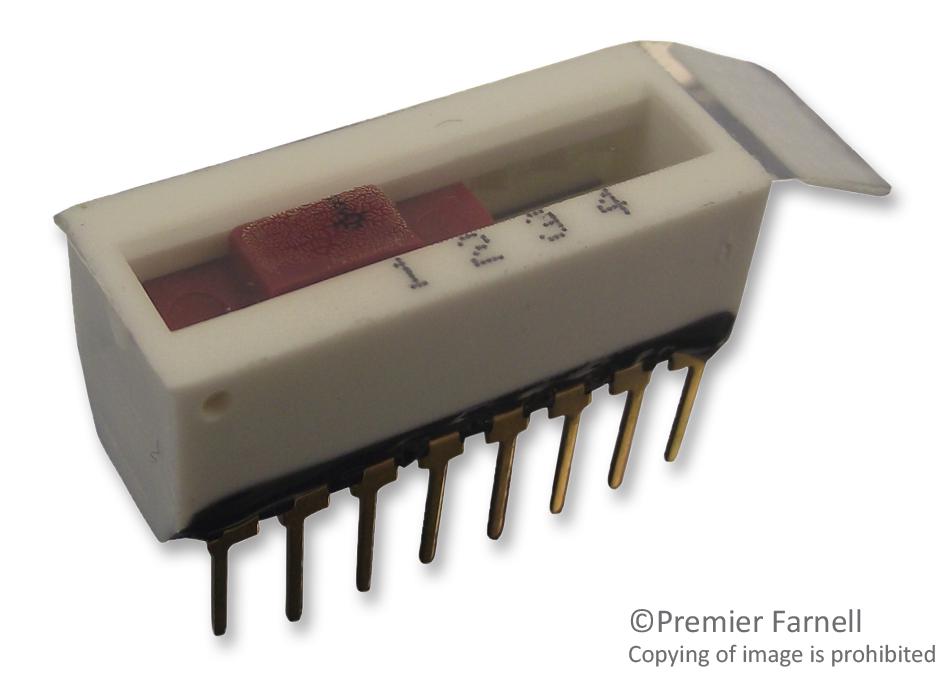

DS16C2-4 Switch, Dil, 2POLE, 4WAY Erg Components

ERG COMPONENTSUGS :DS16C2-4 Code de commande:422915

Prix:
Prix ​​promotionnel€36,87

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (127 unité)

Documents et téléchargements

description

ERG COMPONENTS - DS16C2-4 - DIP / SIP Switch, 2 Circuits, Slide, Through Hole, DPDT, 30 V, 250 mA

  • No. of Circuits: 2Circuits
  • Switch Actuator Style: Slide
  • Switch Mounting: Through Hole
  • Contact Configuration: DPDT
  • Contact Voltage DC Max: 30V
  • Contact Current DC Max: 250mA
  • Product Range: 16 Series
  • Switch Type: -
  • SVHC: No SVHC (17-Dec-2015)
  • Contact Current @ Contact Voltage DC Max: 30A
  • Contact Current AC Max: 2A
  • Contact Current Rating: 250mA
  • Contact Resistance: 30mohm
  • Dielectric Strength VDC: 500V
  • External Length / Height: 22.7mm
  • External Width: 9.9mm
  • Height Max: 9.3mm
  • Insulation Resistance: 100000Mohm
  • Lead Spacing: 2.54mm
  • Length: 22.7mm
  • Material: Glass Filled Polyamide
  • No. of Mechanical Operations: 20000
  • No. of Positions: 4Ways
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -55°C
  • Pin Configuration: DIL
  • Pitch Spacing: 2.54mm
  • Row Pitch: 7.62mm
