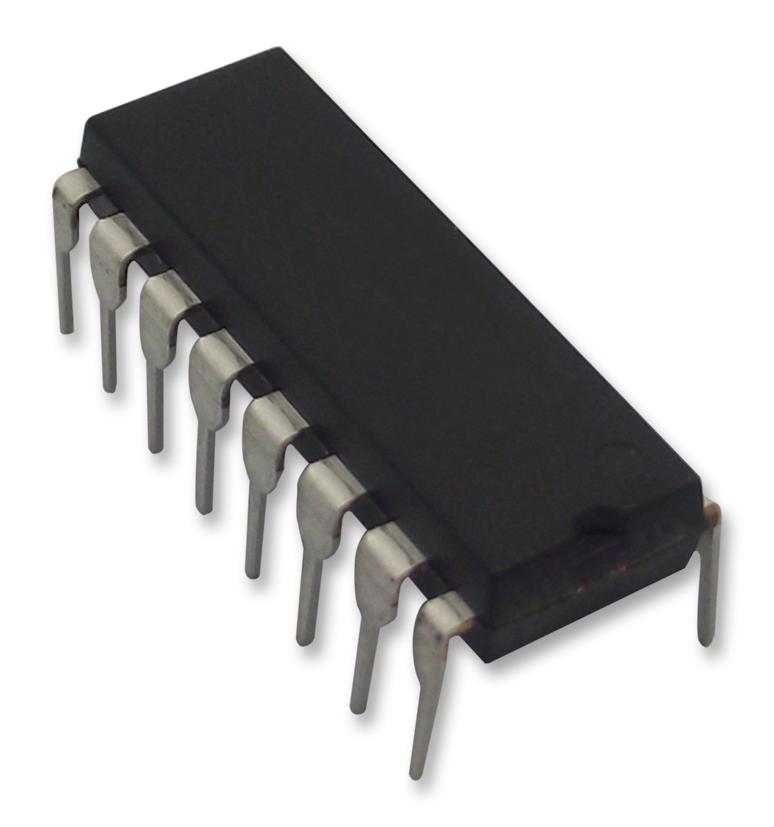

MAXIM INTEGRATED / ANALOG DEVICES - DS1305+ - RTC IC, Date Time Format (Day/Date/Month/Year 12Hr / 24Hr), 3 Wire, Serial, 2 V to 5.5 V, DIP-16
- Date Format: Day
- Clock Format: 12Hr / 24Hr
- Clock IC Type: RTC
- Supply Voltage Min: 2V
- Supply Voltage Max: 5.5V
- Clock IC Case Style: DIP
- No. of Pins: 16Pins
- IC Interface Type: 3 Wire, Serial
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2018)
- Base Number: 1305
- Bus Type: 3 wire or SPI
- Clock Frequency: 32.768kHz
- Device Marking: DS1305+
- IC Case Style: DIP
- IC Generic Number: 1305
- IC Temperature Range: Commercial
- Interrupt Type: Time of day
- Logic Function Number: 1305
- Memory Type: RAM
- No. of Outputs: 1Outputs
- Operating Temperature Range: 0°C to +70°C
- RTC Features: Power Fail Output
- Supply Voltage Range: 2V to 5.5V
- Termination Type: Through Hole
- Type: Alarm RTC
- Voltage Vcc Max: 5V
- Voltage Vcc Min: 3V
