DRS3010 Switch, BCD, HORIZ Knitter-Switch

KNITTER-SWITCHUGS :DRS3010 Code de commande:1190426

Prix:
Prix ​​promotionnel€9,28

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (387 unité)

Documents et téléchargements

description

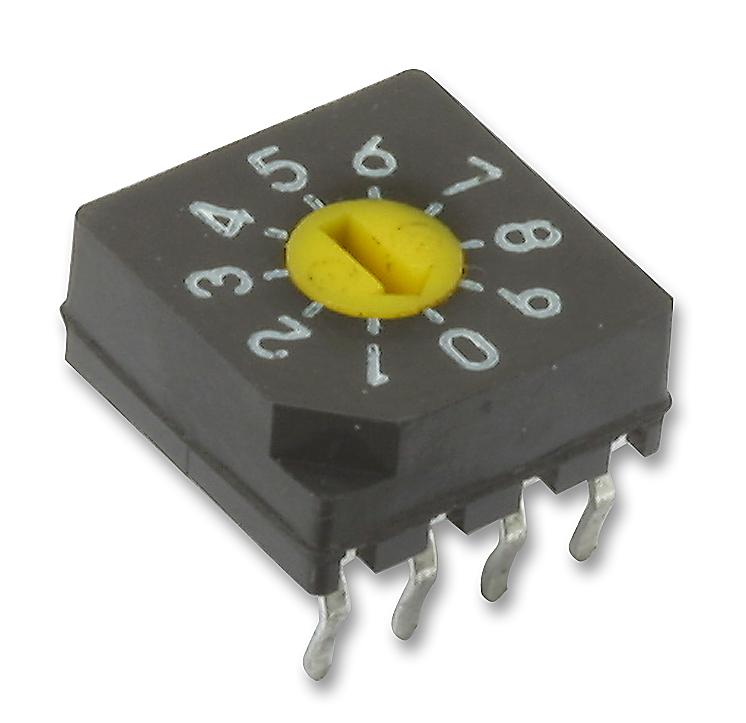

KNITTER-SWITCH - DRS3010 - Rotary Coded Switch, DRS3000, Through Hole, 10 Position, 50 VDC, BCD, 100 mA

  • Product Range: DRS3000 Series
  • Switch Mounting: Through Hole
  • No. of Switch Positions: 10 Position
  • Switching Voltage: 50VDC
  • Output Code: BCD
  • Switching Current: 100mA
  • Switch Construction: Sealed
  • Actuator Level: Flushed
  • SVHC: No SVHC (15-Jan-2018)
  • Angle: 36°
  • Angle of Throw: 36°
  • Contact Current @ Contact Voltage DC Max: 30mA
  • Contact Current DC Max: 30mA
  • Contact Current Rating: 100mA
  • Contact Resistance: 100mohm
  • Contact Voltage DC Max: 50V
  • Dielectric Strength VDC: 250V
  • External Depth: 10mm
  • External Length / Height: 4.8mm
  • External Width: 10mm
  • Indexing Angle: 36°
  • No. of Mechanical Operations: 20000
  • No. of Positions: 10Ways
  • Operating Temperature Max: 75°C
  • Operating Temperature Min: -25°C
  • Pin Configuration: 0.65x0.35mm

Frais de port prévus
