DPM950S DPM, Lcd, 3.5DIGIT, Negative Rail Lascar

LASCARUGS :DPM950S Code de commande:9932658

Prix:
Prix ​​promotionnel€94,93

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (5 unité)

Documents et téléchargements

description

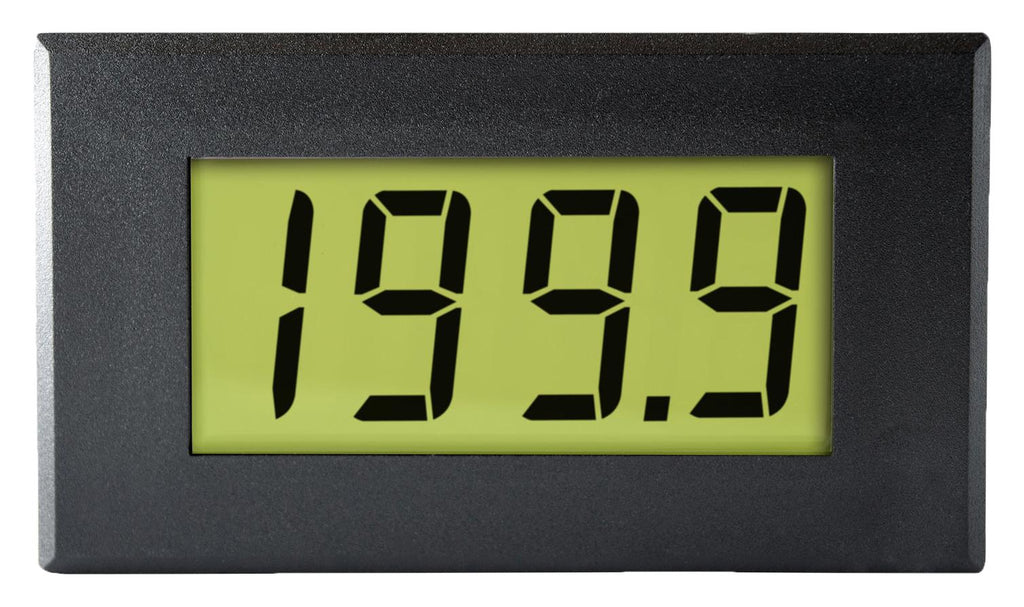

LASCAR - DPM950S - Panel Display, Compact, 3.5 Digit, LCD, 9 Vdc, 150 µA

  • Supply Voltage Min: 3.5VDC
  • Supply Voltage Max: 6.5VDC
  • Backlighting Colour: -
  • No. of Digits / Alpha: 3-1/2
  • Display Size: 51mm x 24mm
  • Screen Size: 0.48"
  • Panel Cutout Height: 40mm
  • Panel Cutout Width: 72mm
  • Panel Cutout Diameter: -
  • Operating Temperature Min: 0°C
  • Operating Temperature Max: 50°C
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Accuracy: 0.05% ± 1
  • Accuracy %: 0.05%
  • Backlight Current: 50mA
  • Character Size: 19mm
  • Digit Height: 19mm
  • Display Technology: LCD
  • External Depth: 11.3mm
  • External Length / Height: 39mm
  • External Width: 76mm
  • Fixing Hole Diameter: 3.2mm
  • Linearity: ± 1 digit
  • Meter Function: DC Voltage
  • Meter Range: 0mV to 200mV
  • Operating Temperature Range: 0°C to +50°C
  • Supply Current: 150µA
  • Supply Voltage DC Max: 6.5V
  • Supply Voltage DC Min: 3.5V
  • Supply Voltage Range: 3.5V DC to 6.5V DC
  • Temperature Stability + @: 100 ppm/C
