DPM340 DPM, Lcd, 3.5DIGIT Lascar

LASCARUGS :DPM340 Code de commande:9932682

Prix:
Prix ​​promotionnel€65,49

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (11 unité)

Documents et téléchargements

description

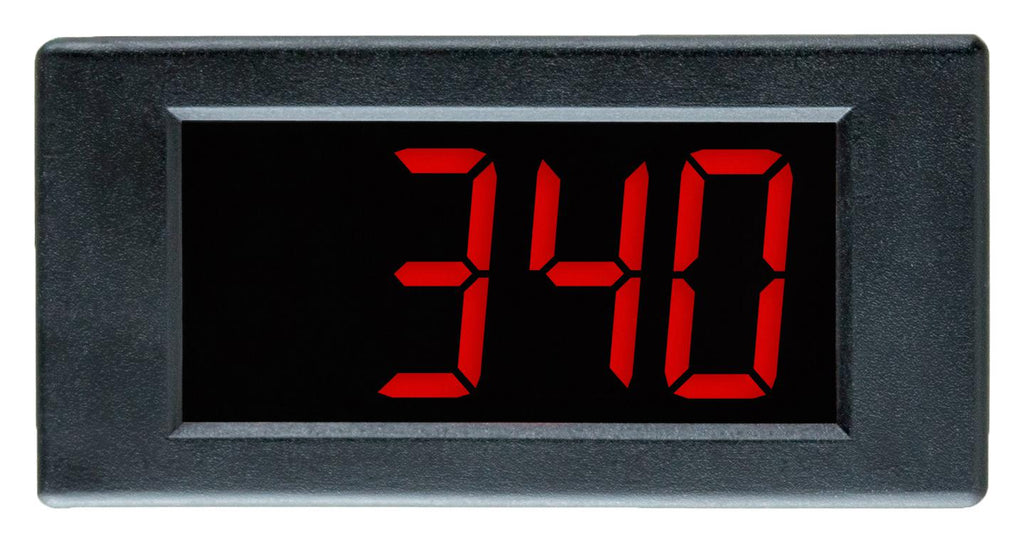

LASCAR - DPM340 - Digital Panel Meter, , 3-1/2 Digits, DC Voltage, 0mV to 200mV

  • No. of Digits / Alpha: 3-1/2
  • Meter Function: DC Voltage
  • Meter Range: 0mV to 200mV
  • Digit Height: 8mm
  • Panel Cutout Height: 18mm
  • Panel Cutout Width: 38mm
  • Supply Voltage Min: 4.75V
  • Supply Voltage Max: 5.25V
  • Operating Temperature Min: 0°C
  • Operating Temperature Max: 50°C
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Accuracy: 0.05% ± 1 count (typical)
  • Character Height: 8mm
  • Display Size: 27.3mm x 12.7mm
  • Display Technology: LCD
  • External Depth: 9.6mm
  • External Length / Height: 20mm
  • External Width: 40mm
  • Full Scale Reading: 200mV
  • Linearity: ± 1 count (max)
  • Operating Temperature Range: 0°C to +50°C
  • Supply Current: 50mA
  • Supply Voltage DC Max: 5.25V
  • Supply Voltage DC Min: 4.5V
  • Supply Voltage Range: 4.75V to 5.25V
  • Temperature Stabilty: 150ppm°C typical
