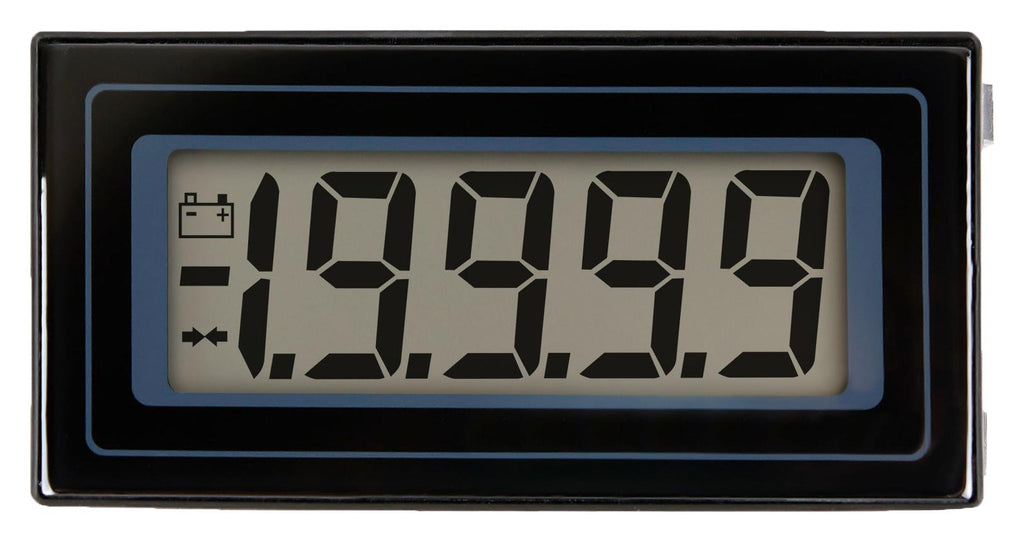

LASCAR - DPM 160 - Digital Panel Meter, Compact LCD, FSR, 4-1/2 Digits, DC Voltage, 0mV to 200mV, 0V to 2V
- No. of Digits / Alpha: 4-1/2
- Meter Function: DC Voltage
- Meter Range: 0mV to 200mV, 0V to 2V
- Digit Height: 12.5mm
- Panel Cutout Height: 27mm
- Panel Cutout Width: 57mm
- Supply Voltage Min: 6V
- Supply Voltage Max: 14V
- Operating Temperature Min: 0°C
- Operating Temperature Max: 50°C
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Accuracy: 0.005% + 1 digit
- Bezel Height: 30mm
- Bezel Width: 60mm
- Character Size: 12.5mm
- Display Size: 60mm x 30mm
- Display Technology: LCD
- External Depth: 6.7mm
- External Length / Height: 24.8mm
- External Width: 52mm
- Full Scale Reading: 200mV
- Height: 24.8mm
- Input Leakage Current: 1pA,10pA
- Linearity: ± 1 digit
- No. of Pins: 20Pins
- Operating Temperature Range: 0°C to +50°C
- Panel Cutout Depth: 27mm
- Socket Type: SIL
- Supply Current: 1mA
- Supply Voltage DC Max: 14V
- Supply Voltage DC Min: 6V
- Supply Voltage Range: 6V DC to 14V DC
- Temperature Stability + @: 30ppm/C
