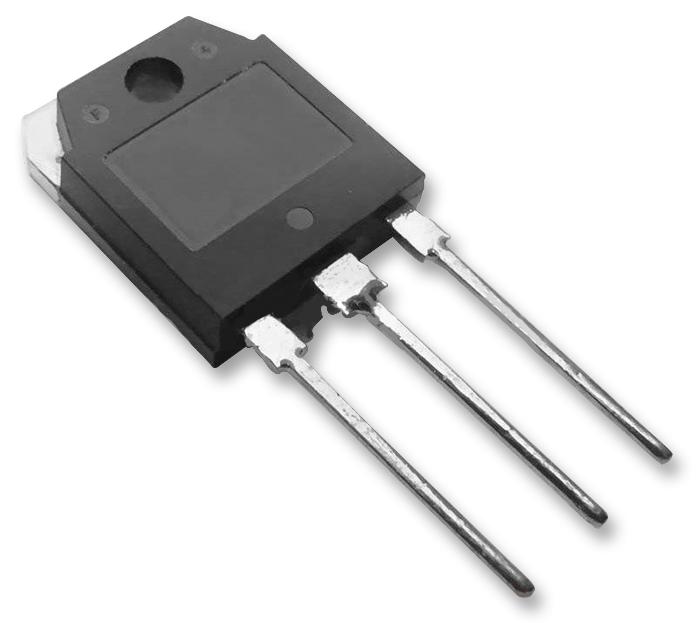

DPG60C200QB Diode, Fast, TO-3P IXYS Semiconductor

IXYS SEMICONDUCTORUGS :DPG60C200QB Code de commande:1572527

Prix:
Prix ​​promotionnel€8,39

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (11 unité)

Documents et téléchargements

description

IXYS SEMICONDUCTOR - DPG60C200QB - Fast / Ultrafast Diode, Epitaxial Diode (FRED), 200 V, 30 A, Dual Common Cathode, 1.06 V, 35 ns

  • Repetitive Reverse Voltage Vrrm Max: 200V
  • Forward Current If(AV): 30A
  • Diode Configuration: Dual Common Cathode
  • Forward Voltage VF Max: 1.06V
  • Reverse Recovery Time trr Max: 35ns
  • Forward Surge Current Ifsm Max: 300A
  • Operating Temperature Max: 175°C
  • Diode Case Style: TO-3P
  • No. of Pins: 3 Pin
  • Product Range: DPG60 Series
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (12-Jan-2017)
  • Current Ifsm: 300A
  • Current Ir Max: 100µA
  • Diode Type: Fast Recovery
  • Junction Temperature Tj Max: 175°C
  • No. of Pins: 3Pins
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +175°C
  • Power Dissipation Ptot Max: 160W
  • Reverse Recovery Time trr Typ: 35ns
  • Termination Type: Through Hole
