DPG120C300QB Diode, Fast, 120A, TO-3P IXYS Semiconductor

IXYS SEMICONDUCTOR - DPG120C300QB - Fast / Ultrafast Diode, High Performance, 300 V, 60 A, Dual Common Cathode, 1.4 V, 35 ns, 550 A

• Repetitive Reverse Voltage Vrrm Max: 300V
• Forward Current If(AV): 60A
• Diode Configuration: Dual Common Cathode
• Forward Voltage VF Max: 1.4V
• Reverse Recovery Time trr Max: 35ns
• Forward Surge Current Ifsm Max: 550A
• Operating Temperature Max: 175°C

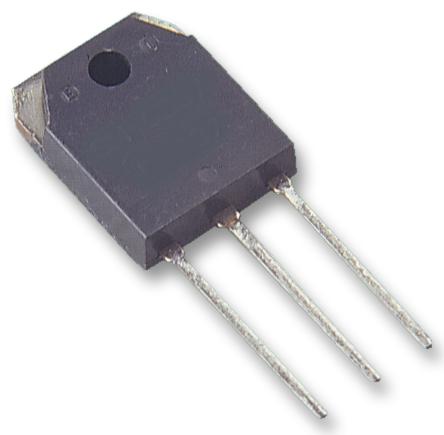

• Diode Case Style: TO-3P
• No. of Pins: 3 Pin
• Product Range: DPG12 Series
• Automotive Qualification Standard: -
• SVHC: No SVHC (12-Jan-2017)
• Case Temperature Tc @ If: 125°C
• Current If @ Vf: 60A
• Current Ifsm: 550A
• Diode Type: Fast Recovery
• Forward Voltage: 1.1V
• Junction Temperature Tj Max: 150°C
• Junction to Case Thermal Resistance A: 0.55°C/W
• No. of Pins: 3Pins
• Operating Temperature Min: -55°C
• Operating Temperature Range: -55°C to +175°C
• Pin Configuration: Common Cathode
• Reverse Recovery Time trr Typ: 35ns
• Termination Type: Through Hole
• Time on for IFSM: 10ms
