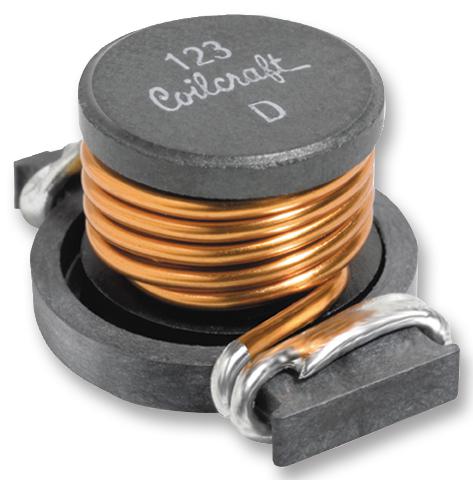

COILCRAFT - DO5040H-682MLD - Power Inductor (SMD), 6.8 µH, 9.6 A, Unshielded, 22.5 A, 18.54mm x 15.24mm x 12mm
- Inductance: 6.8µH
- RMS Current (Irms): 9.6A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 22.5A
- Product Range: -
- Power Inductor Case: 18.54mm x 15.24mm x 12mm
- DC Resistance Max: 0.009ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Reel Quantity: 175
- Self Resonant Frequency Min: 30MHz
