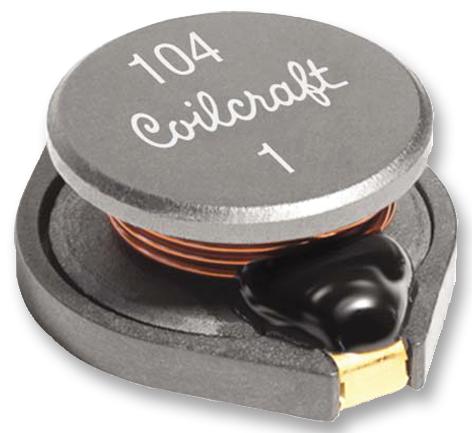

COILCRAFT - DO5022P-102MLD - Power Inductor (SMD), 1 µH, 8.6 A, Unshielded, 27.6 A, DO5022P, 18.03mm x 15.24mm x 7.11mm
- Inductance: 1µH
- RMS Current (Irms): 8.6A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 27.6A
- Product Range: DO5022P Series
- Power Inductor Case: 18.03mm x 15.24mm x 7.11mm
- DC Resistance Max: 0.009ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Reel Quantity: 250
- Self Resonant Frequency Min: 80MHz
