description

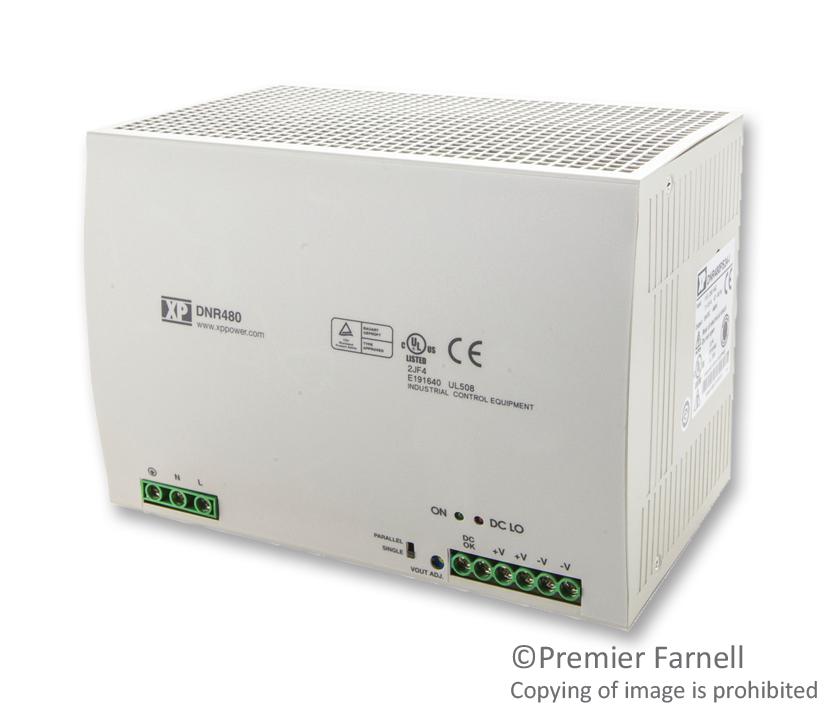

XP POWER - DNR480PS24-I - AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 480 W, 24 VDC, 20 A
- No. of Outputs: 1 Output
- Output Power Max: 480W
- Output Voltage - Output 1: 24VDC
- Output Current - Output 1: 20A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Input Voltage VAC: 90V AC to 264V AC
- Power Supply Output Type: Fixed
- Product Range: 5-960 DNR Series
- SVHC: No SVHC (15-Jan-2018)
- Applications: General Purpose
- Approval Bodies: CE, EN, UL
- Efficiency: 89%
- External Depth: 116mm
- External Length / Height: 125mm
- External Width: 175mm
- Height: 125mm
- Input Frequency: 63Hz
- Input Voltage AC Max: 264VAC
- Input Voltage AC Min: 90VAC
- Length: 116mm
- No. of Outputs: 1Outputs
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Output Current: 20A
- Output Voltage: 24V
- Output Voltage Max: 28.5V
- Output Voltage Min: 22.5V
- Power Rating: 480W
- Power Supply Type: DIN Rail
- Supply Frequency Max: 63Hz
- Supply Frequency Min: 47Hz
- Supply Voltage: 264V
- Weight: 1.92kg
