description

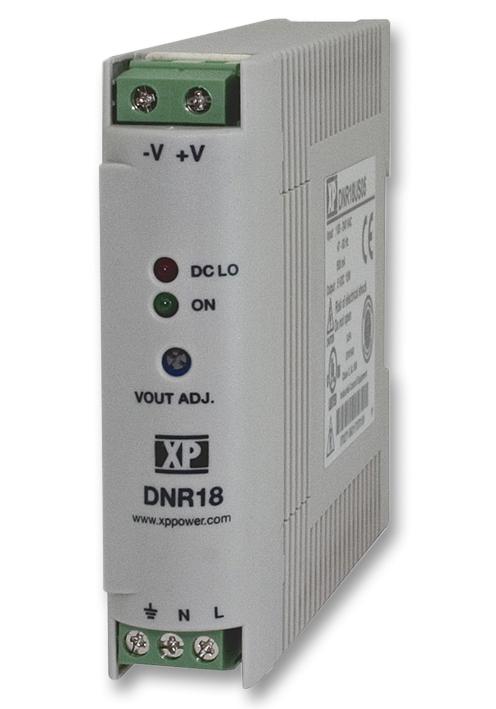

XP POWER - DNR18US15 - AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 18 W, 15 VDC, 1.2 A
- No. of Outputs: 1 Output
- Output Power Max: 18W
- Output Voltage - Output 1: 15VDC
- Output Current - Output 1: 1.2A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Input Voltage VAC: 90V AC to 264V AC
- Power Supply Output Type: Fixed
- Product Range: 5-960 DNR Series
- SVHC: No SVHC (15-Jan-2018)
- Applications: Industrial
- Approval Bodies: CE, cUL, EN, UL
- Efficiency: 75%
- External Depth: 115mm
- External Length / Height: 88.5mm
- External Width: 22.5mm
- Height: 88.5mm
- Input Frequency: 63Hz
- Input Voltage AC Max: 264VAC
- Input Voltage AC Min: 90VAC
- Length: 115mm
- No. of Outputs: 1Outputs
- Operating Temperature Max: 50°C
- Operating Temperature Min: -10°C
- Output Current: 1.2A
- Output Voltage: 15V
- Output Voltage Max: 17.25V
- Output Voltage Min: 13.5V
- Power Rating: 18W
- Power Supply Type: DIN Rail
- Supply Frequency Max: 63Hz
- Supply Frequency Min: 47Hz
- Supply Voltage: 264V
