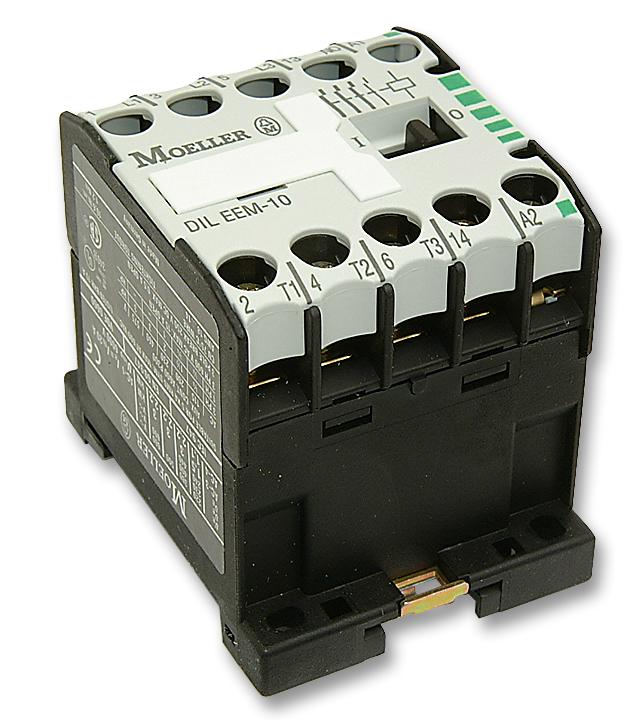

DILEEM-1024V 50Hz Contactor, 3KW, 24Vac Eaton Moeller

EATON MOELLERUGS :DILEEM-1024V 50HZ Code de commande:585932

Prix:
Prix ​​promotionnel€61,32

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seul 1 produit disponible

Documents et téléchargements

description

EATON MOELLER - DILEEM-1024V 50HZ - Contactor, DIN Rail, 24 VAC, 3PST-NO, 3 Pole

  • Load Current Inductive: -
  • Relay Mounting: DIN Rail
  • Operating Voltage: 24VAC
  • Contact Configuration: 3PST-NO
  • No. of Poles: 3 Pole
  • Switching Power AC3: -
  • Switching Current AC1: 22A
  • Coil Voltage VAC Nom: 24V
  • Coil Voltage VDC Nom: -
  • Switching Power AC1: -
  • Load Current Resistive: -
  • Switching Current AC3: 6.6A
  • Product Range: DILEEM
  • SVHC: No SVHC (17-Dec-2015)
  • Aux Contact Current Max: 10A
  • Coil Frequency Max: 50Hz
  • Coil Operating Frequency Min: 50Hz
  • Contact Current AC Max: 6A
  • Contact Current DC Max: 500mA
  • Contact Voltage AC Max: 400V
  • Contact Voltage DC Max: 220V
  • External Depth: 52mm
  • External Length / Height: 58mm
  • External Width: 45mm
  • IP / NEMA Rating: IP20
  • Insulation Voltage: 690V
  • Main Contact Current AC1 Max: 20A
  • Main Contact Current AC3 Max: 6.6A
  • No. of Mechanical Operations: 10000000
  • Operating Temperature Max: 50°C
  • Operating Temperature Min: -25°C
  • Relay Type: Contactor
  • Switching AC3 Power Max: 3kW
