DFLS240-7 Rectifier STD Recovery PowerDI 123 Diodes Inc.

DIODES INC.UGS :DFLS240-7 Code de commande:1713896

Prix:
Prix ​​promotionnel€1,08

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (8092 unité)

Documents et téléchargements

description

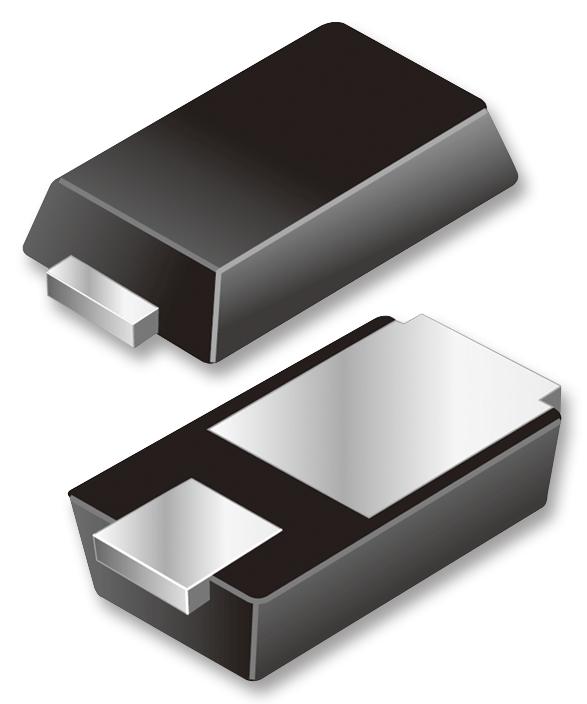

DIODES INC. - DFLS240-7 - Schottky Rectifier, POWERDI®, 40 V, 2 A, Single, PowerDI 123, 2 Pins, 700 mV

  • Repetitive Reverse Voltage Vrrm Max: 40V
  • Forward Current If(AV): 2A
  • Diode Configuration: Single
  • Diode Case Style: PowerDI 123
  • No. of Pins: 2Pins
  • Forward Voltage VF Max: 700mV
  • Forward Surge Current Ifsm Max: 40A
  • Operating Temperature Max: 125°C
  • Product Range: DFLS2 Series
  • Automotive Qualification Standard: -
  • SVHC: Lead (15-Jan-2019)
  • Current Ifsm: 40A
  • Diode Type: Schottky
  • Junction Temperature Tj Max: 125°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +125°C
  • Semiconductor Technology: Si
  • Termination Type: Surface Mount Device
