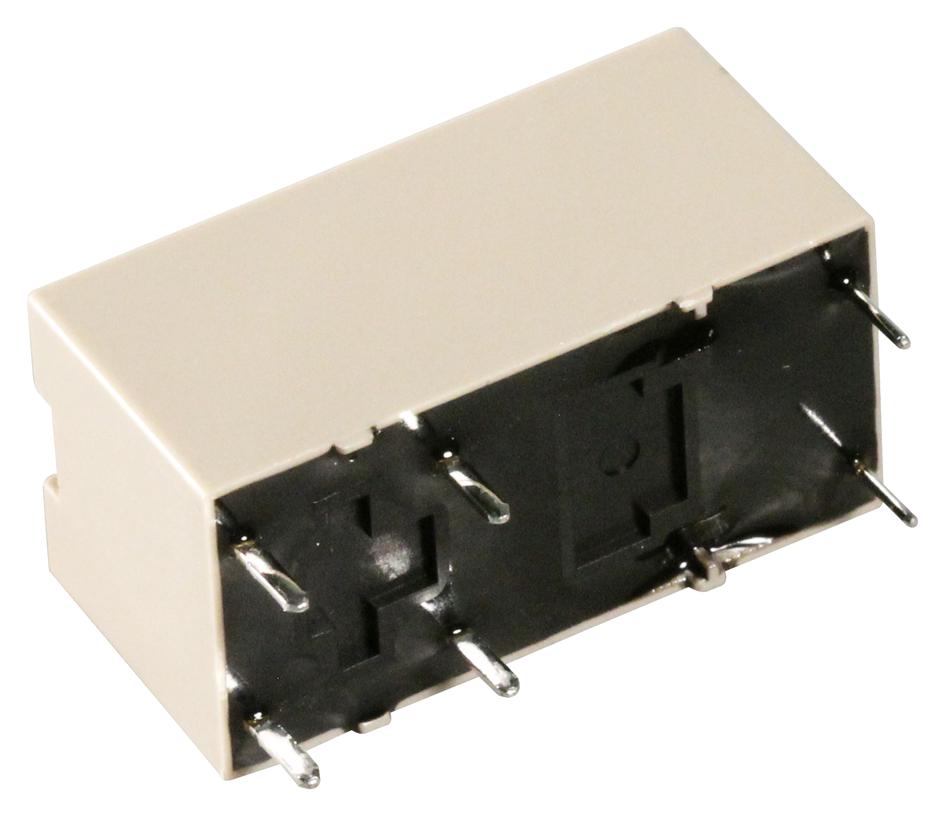

PANASONIC - DE1A1B-L-3V - General Purpose Relay, DE(ADE) Series, Power, Latching Single Coil, SPST-NO, SPST-NC, 3 VDC, 8 A
- Contact Configuration: SPST-NO, SPST-NC
- Coil Voltage: 3VDC
- Contact Current: 8A
- Product Range: DE Series
- Relay Mounting: Through Hole
- Coil Type: Latching Single Coil
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: 30VDC
- Contact Material: Silver Tin Oxide
- Coil Resistance: 90ohm
- SVHC: No SVHC (07-Jul-2017)
- Coil Current: 33.3mA
- Coil Voltage VDC Nom: 3V
- Contact Current Max: 8A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 30V
- External Depth: 25mm
- External Height: 12.5mm
- External Width: 12.5mm
- Nom Operating Power: 100mW
- Relay Type: Power
