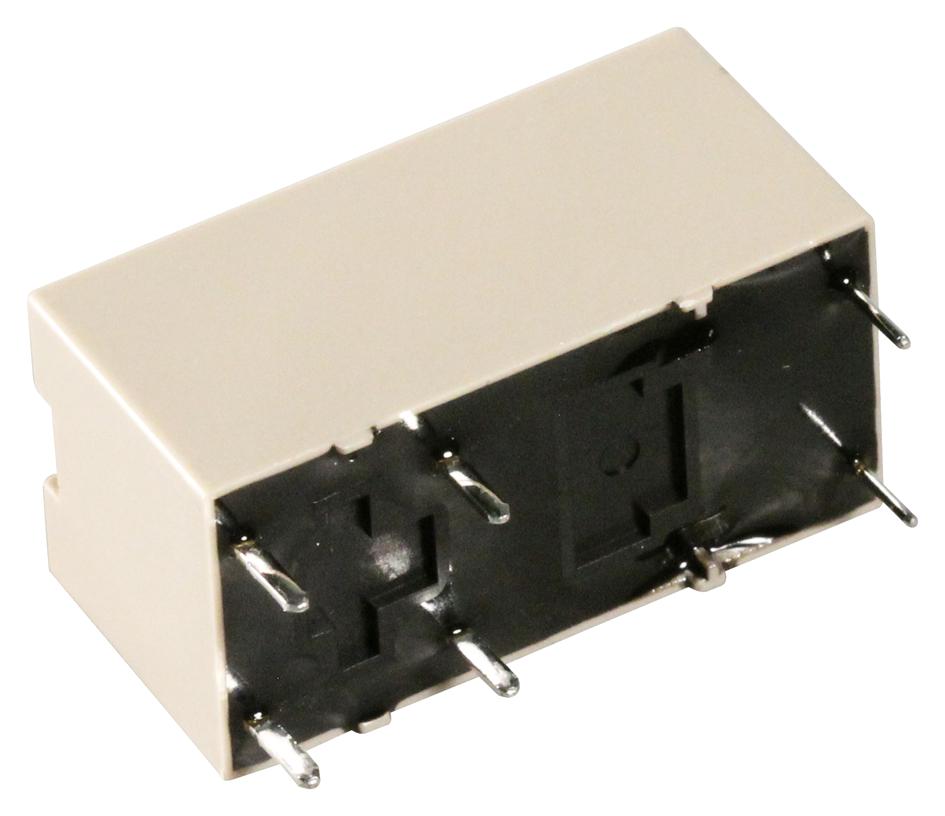

DE1A-L2-3V Relay, SPST-NO, 250VAC, 30Vdc, 10A Panasonic

PANASONICUGS :DE1A-L2-3V Code de commande:2095601

Prix:
Prix ​​promotionnel€13,73

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (33 unité)

Documents et téléchargements

description

PANASONIC - DE1A-L2-3V - General Purpose Relay, DE(ADE) Series, Power, Latching Dual Coil, SPST-NO, 3 VDC, 10 A

  • Contact Configuration: SPST-NO
  • Coil Voltage: 3VDC
  • Contact Current: 10A
  • Product Range: DE Series
  • Relay Mounting: Through Hole
  • Coil Type: Latching Dual Coil
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Tin Oxide
  • Coil Resistance: 45ohm
  • SVHC: No SVHC (07-Jul-2017)
  • Coil Current: 66.6mA
  • Coil Voltage VDC Nom: 3V
  • Contact Current Max: 10A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 30V
  • External Depth: 25mm
  • External Height: 12.5mm
  • External Width: 12.5mm
  • Nom Operating Power: 200mW
  • Relay Type: Power
