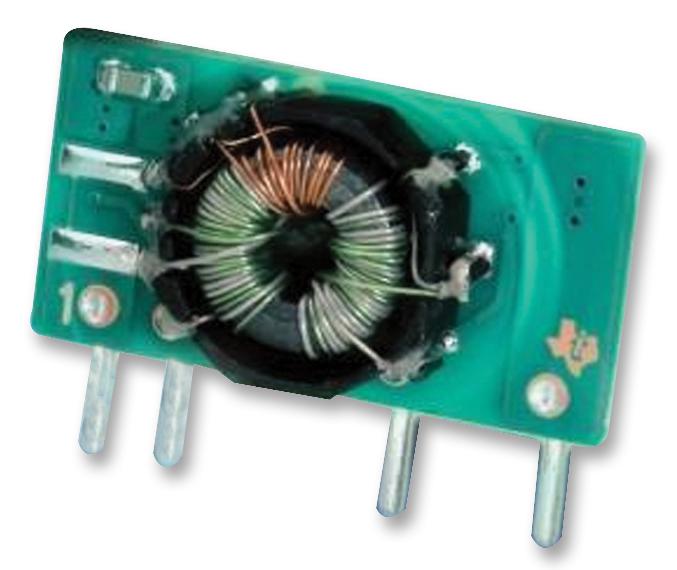

DCH010505DN7 Ic, Conv DC-DCMINI1W3KVDCISOL Texas Instruments

TEXAS INSTRUMENTSUGS :DCH010505DN7 Code de commande:3009706

Prix:
Prix ​​promotionnel€9,69

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seulement 2 produits disponibles

description

TEXAS INSTRUMENTS - DCH010505DN7 - Isolated Through Hole DC/DC Converter, ITE, 1:1, 1 W, 2 Output, 5 V, 100 mA

  • No. of Outputs: 2 Output
  • Output Power Max: 1W
  • Output Voltage - Output 1: 5V
  • Output Current - Output 1: 100mA
  • Output Voltage - Output 2: -5V
  • Output Current - Output 2: 100mA
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Product Range: -
  • Input Voltage DC Min: 4.5V
  • Input Voltage DC Max: 5.5V
  • DC / DC Converter Output Type: Fixed
  • DC / DC Converter Type: SIP
  • DC / DC Converter Mounting: Through Hole
  • Width: 10.15mm
  • Height: 7.62mm
  • Depth: 19.56mm
  • SVHC: No SVHC (15-Jan-2019)
  • Accuracy %: 1%
  • Base Number: 10505
  • Frequency: 70kHz
  • No. of Outputs: 2Outputs
  • No. of Pins: 5Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • Output Voltage Max: 5V
  • Power Rating: 1W
  • Primary Input Voltage: 5V
  • Supply Voltage Max: 5.5V
  • Supply Voltage Min: 4.5V
  • Switch Output Current Isw Max: 100mA
  • Voltage Regulator Type: Isolated Unregulated
