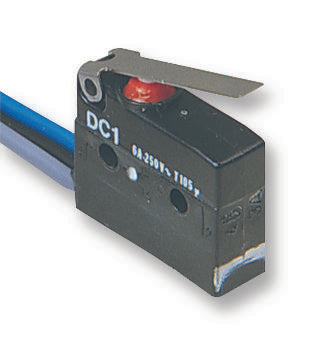

ZF ELECTRONICS - DC1C-C3LC - Microswitch, Snap Action, Lever, SPDT, Wire Leaded, 5 A, 48 VDC
- Microswitch Type: Snap Action
- Microswitch Actuator: Lever
- Contact Configuration: SPDT
- Switch Terminals: Wire Leaded
- Contact Current Max: 5A
- Contact Voltage DC Nom: 48VDC
- Product Range: -
- Contact Voltage AC Nom: 250VAC
- Operating Force Max: 70N
- SVHC: No SVHC (15-Jan-2019)
- Actuation Type: Lever
- Actuator Type: Lever
- Contact Current AC: 6A
- Contact Current AC Max: 5A
- Contact Current DC Max: 1A
- Contact Current Rating: 6A
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 48V
- Differential Travel Max: 0.6mm
- External Depth: 19.9mm
- External Length / Height: 15.85mm
- External Width: 6.5mm
- Fixing Centres LxW: 9.5mm
- Flammability Rating: UL94V-0
- IP / NEMA Rating: IP67
- No. of Electrical Operations: 10000
- No. of Mechanical Operations: 1000000
- Operating Force: 0.7N
- Operating Temperature Max: 120°C
- Operating Temperature Min: -40°C
- Over Travel Min: 1.5mm
- Pre-travel: 5mm
- Switch Case: PBT (Polybutylene Terephthalate), PET (Polyethylene Terephthalate)
