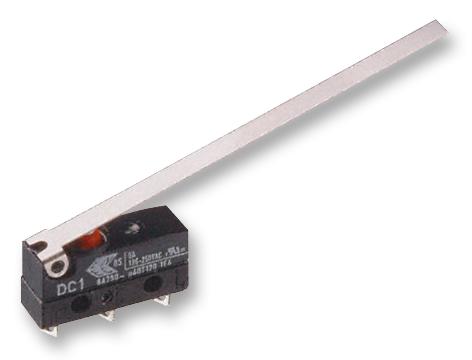

DC1C-A1LD Microswitch, SPDT, Long Lever ZF Electronics

ZF ELECTRONICSUGS :DC1C-A1LD Code de commande:1519027

Prix:
Prix ​​promotionnel€8,59

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (189 unité)

Documents et téléchargements

description

ZF ELECTRONICS - DC1C-A1LD - Microswitch, Snap Action, Long Lever, SPDT, Quick Connect, Solder, 5 A, 48 VDC

  • Microswitch Type: Snap Action
  • Microswitch Actuator: Long Lever
  • Contact Configuration: SPDT
  • Switch Terminals: Quick Connect, Solder
  • Contact Current Max: 5A
  • Contact Voltage DC Nom: 48VDC
  • Product Range: DC Series
  • Contact Voltage AC Nom: 250VAC
  • Operating Force Max: 0.8N
  • SVHC: No SVHC (15-Jan-2019)
  • Actuation Type: Long Lever
  • Actuator Type: Long Lever
  • Approval Bodies: ENEC, VDE
  • Approval Category: UL Recognised
  • Contact Current AC: 5A
  • Contact Current AC Max: 5A
  • Contact Current DC Max: 1A
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 48V
  • External Depth: 6.5mm
  • External Length / Height: 9.25mm
  • External Width: 20mm
  • Fixing Centres LxW: 22.2mm
  • Flammability Rating: UL 94V-O
  • Material: PET/PBT
  • Operating Temperature Max: 120°C
  • Operating Temperature Min: -40°C
  • Switch Case: PBT (Polybutylene Terephthalate), PET (Polyethylene Terephthalate)
