description

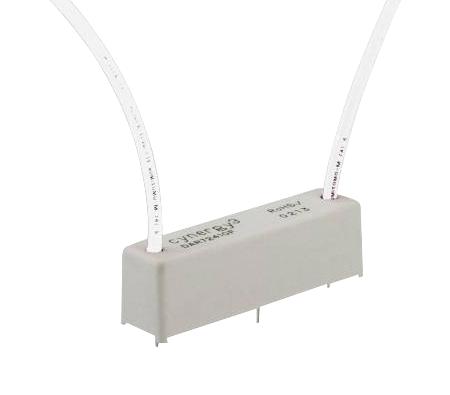

SENSATA / CYNERGY3 - DAT72415F - Reed Relay, SPST-NO, 24 VDC, D, Through Hole, 350 ohm, 2 A
- Contact Configuration: SPST-NO
- Coil Voltage: 24VDC
- Product Range: D Series
- Relay Mounting: Through Hole
- Coil Resistance: 350ohm
- Switching Current Max: 2A
- Switching Voltage Max: 10kV
- SVHC: No SVHC (17-Dec-2015)
- Coil Voltage VDC Nom: 24V
- External Depth: 15.8mm
- External Height: 18.5mm
- External Width: 60mm
- Operating Temperature Max: 70°C
- Operating Temperature Min: -20°C
- Operating Time: 3ms
- Release Time: 2ms
- Switch Power Max: 50W
