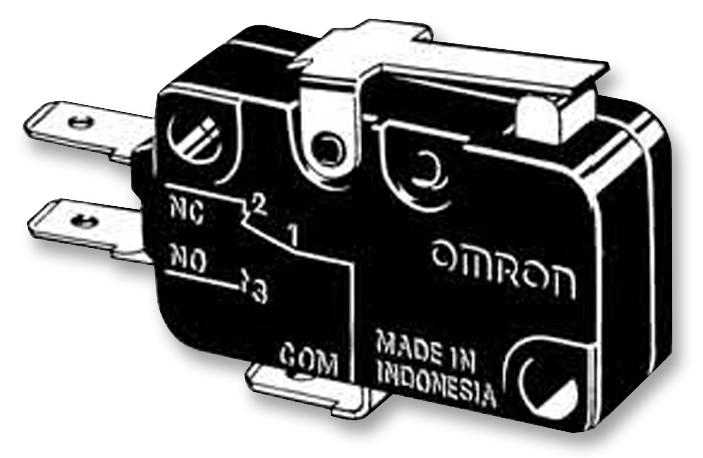

OMRON - D3V-161-1C5 - Microswitch, Miniature, Short Hinge Lever, SPDT, Quick Connect, 16 A, 250 V
- Microswitch Type: Snap Action
- Microswitch Actuator: Short Lever
- Contact Configuration: SPDT
- Switch Terminals: Quick Connect, Solder
- Contact Current Max: 16A
- Contact Voltage DC Nom: 250VDC
- Product Range: D3V Series
- Contact Voltage AC Nom: 250VAC
- Operating Force Max: 1.96N
- Actuation Type: Short Lever
- Actuator Type: Short Hinge Lever
- Contact Current AC: 16A
- Contact Current AC Max: 16A
- Contact Current DC Max: 16A
- Contact Resistance: 30mohm
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 250V
- Dielectric Strength VDC: 1000V
- Differential Travel Max: 0.6mm
- External Depth: 27.8mm
- External Length / Height: 18.7mm
- External Width: 10.3mm
- Fixing Centres LxW: 22.2mm
- IP / NEMA Rating: IP00
- Insulation Resistance: 100Mohm
- No. of Electrical Operations: 100000
- No. of Mechanical Operations: 10000000
- Operating Force: 1.96N
- Operating Temperature Max: 105°C
- Operating Temperature Min: -25°C
- Over Travel Min: 0.8mm
- Pre-travel: 1.6mm
- Release Force: 50gf
