Documents et téléchargements
description

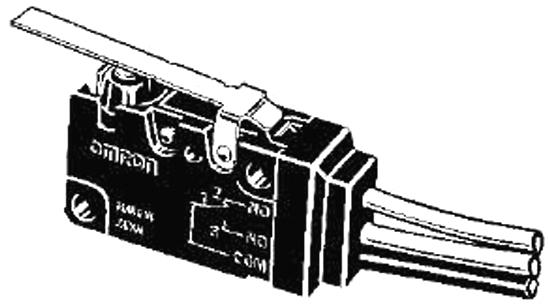

OMRON - D2VW-5L1B-1M - Microswitch, Snap Action, Long Lever, SPDT, Wire Leaded, 5 A, 30 VDC
- Microswitch Type: Snap Action
- Microswitch Actuator: Long Lever
- Contact Configuration: SPDT
- Switch Terminals: Wire Leaded
- Contact Current Max: 5A
- Contact Voltage DC Nom: 30VDC
- Product Range: D2VW Series
- Contact Voltage AC Nom: 250VAC
- Operating Force Max: 0.59N
- Actuation Type: Long Lever
- Actuator Type: Long Lever
- Contact Current AC: 5A
- Contact Current AC Max: 5A
- Contact Current DC Max: 5A
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 30V
- Differential Travel Max: 2mm
- External Depth: 33mm
- External Length / Height: 15.9mm
- External Width: 10.3mm
- Fixing Centres LxW: 22.2mm
- IP / NEMA Rating: IP67
- Insulation Resistance: 100Mohm
- Lead Length: 300mm
- Lever Length: 54.4mm
- No. of Electrical Operations: 100000
- Operating Force: 0.59N
- Operating Temperature Max: 90°C
- Operating Temperature Min: -40°C
- Over Travel Min: 3.2mm
- Pre-travel: 9mm
- Release Force: 0.05N
Frais de port prévus
