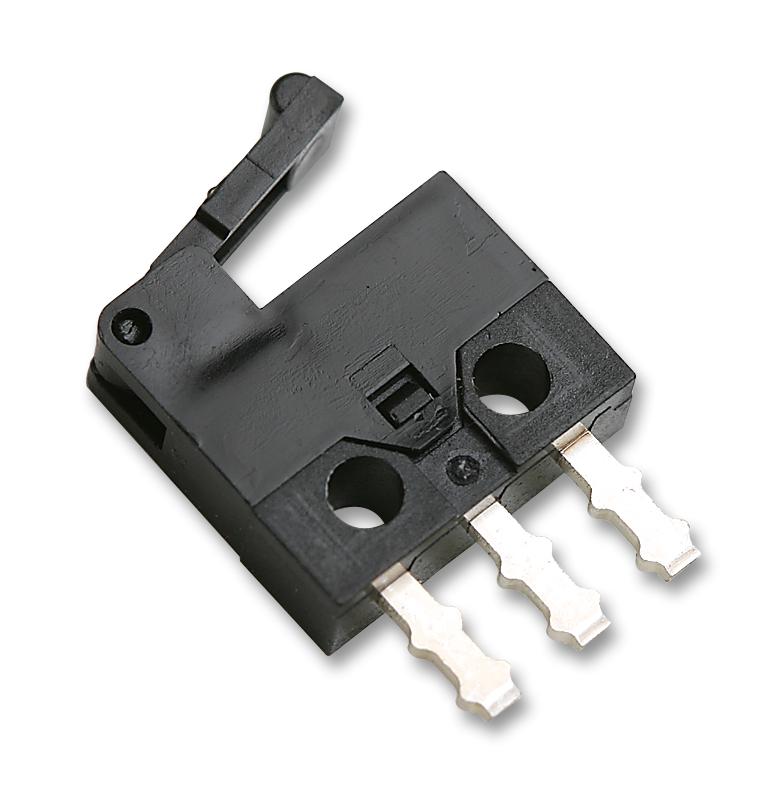

D2MQ-4l-1 Microswitch, Lever Omron

OMRONUGS :D2MQ-4L-1 Code de commande:9901914

Prix:
Prix ​​promotionnel€5,26

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (25332 unité)

Documenten en downloads

description

OMRON - D2MQ-4L-1 - Microswitch, Snap Action, Lever, SPDT, Solder, 500 mA, 30 VDC

  • Microswitch Type: Snap Action
  • Microswitch Actuator: Lever
  • Contact Configuration: SPDT
  • Switch Terminals: Solder
  • Contact Current Max: 500mA
  • Contact Voltage DC Nom: 30VDC
  • Product Range: D2MQ Series
  • Contact Voltage AC Nom: -
  • Operating Force Max: 0.39N
  • Actuation Type: Lever
  • Actuator Type: Lever
  • Contact Current AC: 500mA
  • Contact Current DC Max: 500mA
  • Contact Current Rating: 500mA
  • Contact Resistance: 100mohm
  • Contact Voltage DC Max: 30V
  • External Depth: 8.1mm
  • External Length / Height: 6.5mm
  • External Width: 2.6mm
  • Fixing Centres: 4mm
  • Fixing Centres LxW: 4mm
  • Insulation Resistance: 100Mohm
  • No. of Electrical Operations: 10000
  • No. of Mechanical Operations: 30000
  • Operating Force: 0.39N
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -15°C
  • Pre-travel: 0.4mm
