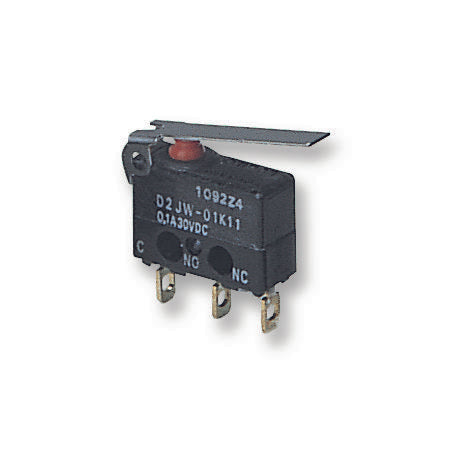

OMRON - D2JW-01K11 - Microswitch, Snap Action, Lever, SPDT, Solder, 100 mA, 30 VDC
- Microswitch Type: Snap Action
- Microswitch Actuator: Lever
- Contact Configuration: SPDT
- Switch Terminals: Solder
- Contact Current Max: 100mA
- Contact Voltage DC Nom: 30VDC
- Product Range: D2JW Series
- Contact Voltage AC Nom: -
- Operating Force Max: 82gf
- Actuation Type: Lever
- Actuator Type: Lever
- Contact Current AC: 100mA
- Contact Current DC Max: 100mA
- Contact Current Rating: 0.1A
- Contact Resistance: 100mohm
- Contact Voltage DC Max: 30V
- Differential Travel Max: 0.7mm
- External Depth: 12.7mm
- External Length / Height: 9.4mm
- External Width: 5.3mm
- Fixing Centres LxW: 5mm
- Insulation Resistance: 100Mohm
- Insulation Resistance Voltage: 500V
- Lever Length: 16.5mm
- No. of Electrical Operations: 100000
- Operating Force: 0.8N
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Over Travel Min: 1.4mm
- Pre-travel: 6.4mm
- Release Force: 0.15N
