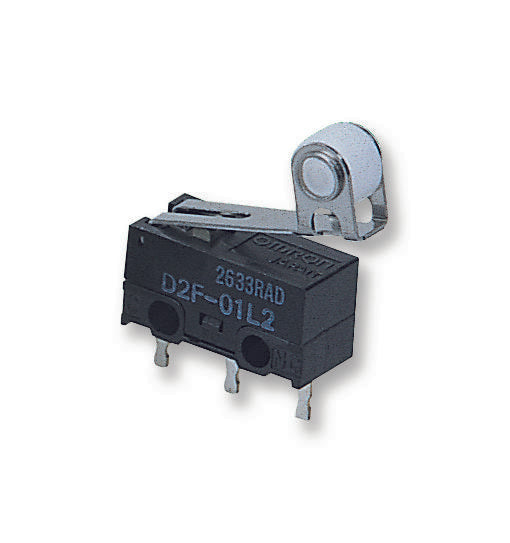

OMRON - D2F-L2 - Microswitch, Snap Action, Roller Lever, SPDT, Through Hole, 3 A, 30 VDC
- Microswitch Type: Snap Action
- Microswitch Actuator: Roller Lever
- Contact Configuration: SPDT
- Switch Terminals: Through Hole
- Contact Current Max: 3A
- Contact Voltage DC Nom: 30VDC
- Product Range: D2F Series
- Contact Voltage AC Nom: 125VAC
- Operating Force Max: 0.78N
- SVHC: No SVHC (27-Jun-2018)
- Actuator Type: Roller Lever
- Approval Bodies: CSA, UL
- Contact Current @ Contact Voltage AC Max: 3A
- Contact Current @ Contact Voltage DC Max: 2A
- Contact Current AC: 3A
- Contact Resistance: 30mohm
- Differential Travel Max: 0.05mm
- External Depth: 12.8mm
- External Length / Height: 6.5mm
- External Width: 5.8mm
- Fixing Centres: 6.5mm
- Insulation Resistance: 100Mohm
- Insulation Resistance Voltage: 500V
- Lever Length: 12.8mm
- No. of Electrical Operations: 30000
- Operating Force: 0.78N
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Over Travel Min: 0.55mm
- Pre-travel: 0.5mm
- Release Force: 0.05N
