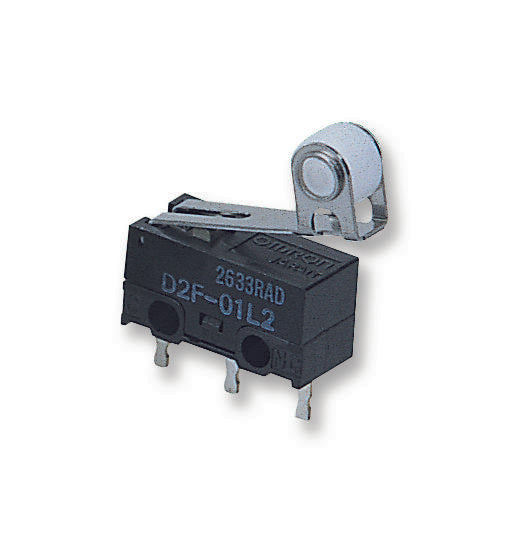

D2F-01L2 Microswitch, Roller Lever Omron

OMRONUGS :D2F-01L2 Code de commande:9901965

Prix:
Prix ​​promotionnel€5,26

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (42 unité)

Documenten en downloads

description

OMRON - D2F-01L2 - Microswitch, Snap Action, Roller Lever, SPDT, Solder, 100 mA, 30 VDC

  • Microswitch Type: Snap Action
  • Microswitch Actuator: Roller Lever
  • Contact Configuration: SPDT
  • Switch Terminals: Solder
  • Contact Current Max: 100mA
  • Contact Voltage DC Nom: 30VDC
  • Product Range: D2F Series
  • Contact Voltage AC Nom: -
  • Operating Force Max: 0.78N
  • Actuation Type: Roller Lever
  • Actuator Type: Roller Lever
  • Approval Bodies: CSA, UL
  • Contact Current @ Contact Voltage AC Max: 3A
  • Contact Current @ Contact Voltage DC Max: 0.1A
  • Contact Current AC: 3A
  • Contact Current DC Max: 100mA
  • Contact Resistance: 30mohm
  • Contact Voltage DC Max: 30V
  • Differential Travel Max: 0.05mm
  • External Depth: 12.8mm
  • External Length / Height: 6.5mm
  • External Width: 5.8mm
  • Fixing Centres: 6.5mm
  • Insulation Resistance: 100Mohm
  • Insulation Resistance Voltage: 500V
  • Lever Length: 12.8mm
  • No. of Electrical Operations: 30000
  • Operating Force: 0.78N
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Over Travel Min: 0.55mm
  • Pre-travel: 0.5mm
  • Release Force: 0.05N
