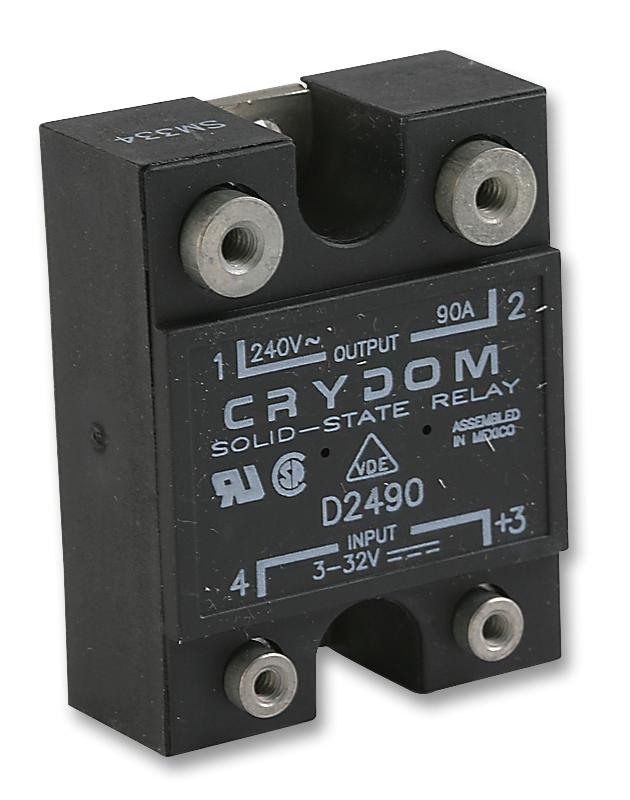

SENSATA/CRYDOM - D2490 - Solid State Relay, SPST-NO, 90 A, 280 VAC, Panel Mount, Screw, Zero Crossing
- Contact Configuration: SPST-NO
- Load Current: 90A
- Operating Voltage Max: 280VAC
- Relay Mounting: Panel
- Relay Terminals: Screw
- Switching Mode: Zero Crossing
- Operating Voltage Min: 24VAC
- Control Voltage Min: 3VDC
- Control Voltage Max: 32VDC
- Product Range: 1 Series
- SVHC: No SVHC (07-Jul-2017)
- Blocking voltage: 600V
- Control Voltage DC Max: 32VDC
- Control Voltage DC Min: 3VDC
- Control Voltage Range: 3V DC to 32V DC
- Control Voltage Type: DC
- External Depth: 22.2mm
- External Diameter: 4.4mm
- External Length / Height: 57.2mm
- External Width: 44.4mm
- Fixing Centres: 47.6mm
- Isolation Voltage: 4kV
- Load Current Min: 40mA
- Load Current RMS Max: 90A
- Must Release Voltage: 1V
- Operating Voltage Range: 24Vrms to 280Vrms
- Output Type: Thyristor
- RMS Load Current Min: 40mA
- RMS Load Voltage Max: 280V
- RMS Load Voltage Min: 48V
- Rate of Voltage Change dv / dt: 500V/µs
- Resistance: 1500ohm
- Single Cycle Surge Current: 1200A
- Surge Current: 1200A
