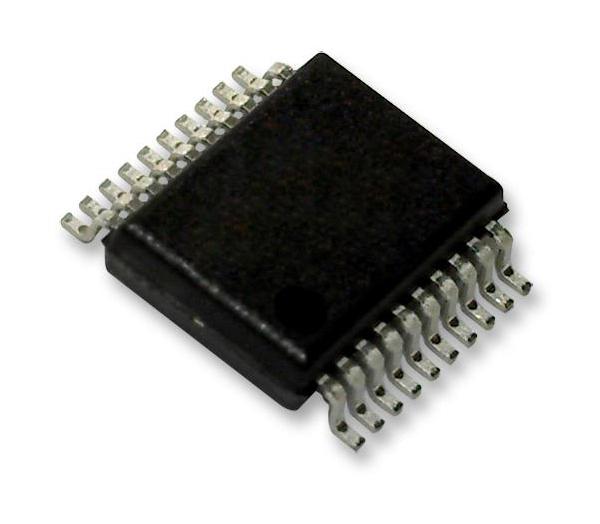

CYPRESS - INFINEON TECHNOLOGIES - CY8C24223A-24PVXI - 8 Bit MCU, PSOC1, PSOC 1 Family CY8C24x23A Series Microcontrollers, 24 MHz, 4 KB, 256 Byte, 20 Pins
- Product Range: PSOC 1 Family CY8C24x23A Series Microcontrollers
- CPU Speed: 24MHz
- Program Memory Size: 4KB
- RAM Memory Size: 256Byte
- No. of Pins: 20Pins
- MCU Case Style: SSOP
- No. of I/O's: 16I/O's
- Embedded Interface Type: I2C, SPI, UART
- Supply Voltage Min: 2.4V
- Supply Voltage Max: 5.25V
- MCU Family: PSoC 1
- MCU Series: CY8C24x23A
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (17-Dec-2015)
- Base Number: 24223
- Clock Frequency: 48MHz
- Controller Family/Series: CY8C24xxx
- EEPROM Memory Size: 4KB
- IC Generic Number: 8C24223A
- Logic Function Number: 8C24223A
- MPU Core Size: 8bit
- No. of PWM Channels: 4
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
- Peripherals: ADC, DAC, PWM, Timer
- Program Memory Size: 4KB
- Supply Voltage Range: 2.4V to 5.25V
- Termination Type: Surface Mount Device
