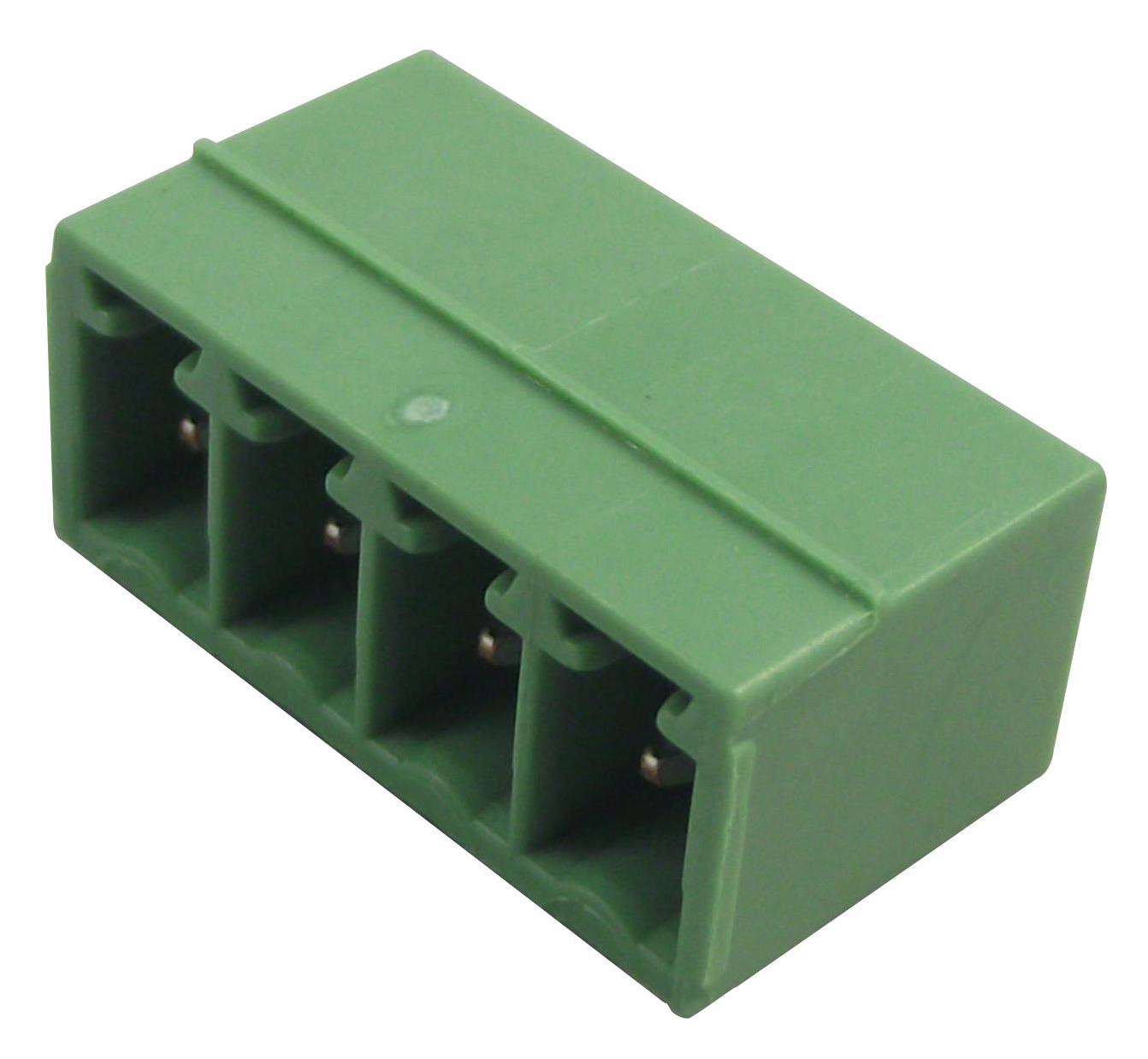

CAMDENBOSS - CTB93VE/4 - Standard Terminal Block, Pluggable, CTB93VE, 4 Contacts, 3.81 mm, Terminal Block, PCB
- Product Range: CTB93VE Series
- No. of Contacts: 4Contacts
- Pitch Spacing: 3.81mm
- Connector Type: Terminal Block, PCB
- Connector Mounting: Through Hole Mount
- Wire Size AWG Max: -
- Wire Size AWG Min: -
- Contact Plating: Tin Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2019)
- Block Orientation: Through Hole Vertical
- Colour: Green
- Connector Mounting Orientation: PC Board
- Contact Termination: Through Hole Vertical
- Contact Termination Type: Through Hole
- Current Rating: 10A
- Gender: Header
- Insulation Resistance: 5Mohm
- Length: 15.4mm
- Material: UL94-V0 Flame Retardant PA66
- No. of Positions: 4Ways
- No. of Rows: 1Rows
- Operating Temperature Max: 125°C
- Operating Temperature Min: -20°C
- Polarisation Type: Vertical
- Rated Current: 10A
- Rated Voltage: 200V
- Withstand Voltage: 1.25kV
- Working Voltage: 200V
