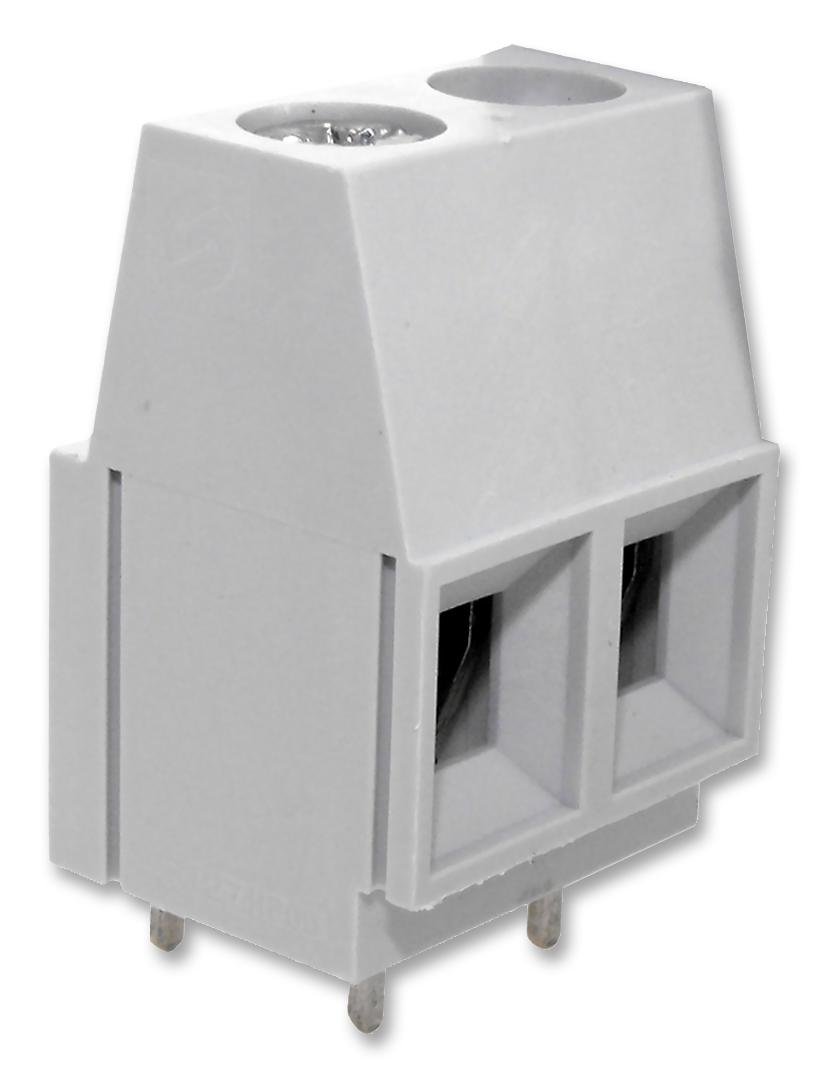

CAMDENBOSS - CTB77VP/6 - Wire-To-Board Terminal Block, 10.16 mm, 6 Ways, 6 AWG, 10 mm², Screw
- Pitch Spacing: 10.16mm
- No. of Positions: 6Ways
- Wire Size AWG Min: -
- Wire Size AWG Max: 6AWG
- Conductor Area CSA: 10mm²
- Wire Connection Method: Screw
- Rated Current: 40A
- Rated Voltage: 300V
- Block Orientation: Through Hole Right Angle
- Product Range: CTB77VP Series
- SVHC: No SVHC (15-Jan-2019)
- Connector Mounting: PCB Mount
- Connector Type: Terminal Block, PCB
- Contact Material: Brass
- Contact Plating: Tin Plated Contacts
- Flammability Rating: UL94V-0
- Insulation Resistance: 5Mohm
- Operating Temperature Max: 110°C
- Operating Temperature Min: -20°C
- Voltage Rating VAC: 750V
