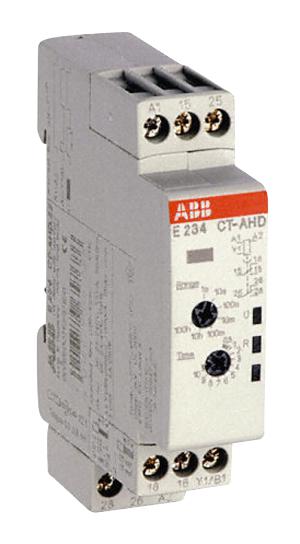

ABB - CT-AHD.12 - Analogue Timer, CT-D, Off-Delay, 0.05 s, 100 h, 7 Ranges, 1 Changeover Relay
- Product Range: CT-D Series
- Timer Functions: Off-Delay
- Time Min: 0.05s
- Time Max: 100h
- No. of Timing Ranges: 7Ranges
- Timer Output: 1 Changeover Relay
- Supply Voltage Max: 240VAC
- Current Rating Nom: 6A
- Connection / Termination: Screw Terminals
- Adjustment Type: Screwdriver Slot
- Coil Voltage VAC Nom: 250V
- Contact Configuration: SPCO
- Contact Current AC Max: 6A
- Contact Current DC Max: 6A
- Contact Rating: 8A
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 24V
- Delay Time Range: 0.05s to 100h
- External Depth: 63mm
- External Length / Height: 70mm
- External Width: 17.5mm
- Nom Input Voltage: 240VAC
- Operating Temperature Max: 60°C
- Operating Temperature Min: -20°C
- Operating Time Range: 7 Time Ranges 0.05s - 100 h
- Relay Mounting: DIN Rail
- Supply Voltage AC Max: 240VAC
- Supply Voltage AC Min: 24VAC
- Supply Voltage DC Max: 48VDC
- Supply Voltage DC Min: 24VDC
- Supply Voltage Min: 24V
- Supply Voltage Range: 24V AC to 240V AC, 24V DC to 48V DC
- Termination Type: Screw
