CRA2512-FZ-R100ELF Current Sense Res, 0R1, 1%, 3 W, 2512 Bourns

BOURNSUGS :CRA2512-FZ-R100ELF Code de commande:1435952

Prix:
Prix ​​promotionnel€0,60

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (76561 unité)

Documents et téléchargements

description

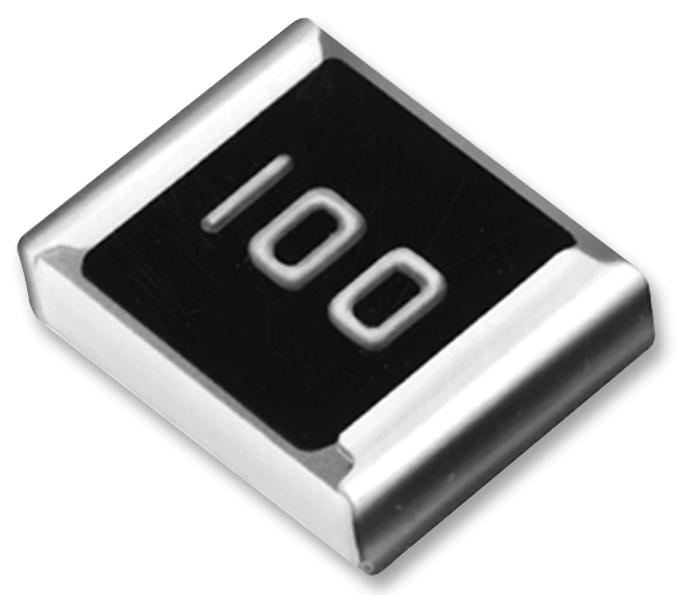

BOURNS - CRA2512-FZ-R100ELF - SMD Current Sense Resistor, 0.1 ohm, CR, 2512 [6432 Metric], 3 W, ± 1%, Metal Film

  • Resistance: 0.1ohm
  • Product Range: CR Series
  • Resistor Case Style: 2512 [6432 Metric]
  • Power Rating: 3W
  • Resistance Tolerance: ± 1%
  • Resistor Element Material: Metal Film
  • Temperature Coefficient: ± 50ppm/°C
  • Automotive Qualification Standard: AEC-Q200
  • SVHC: Lead (15-Jan-2019)
  • External Depth: 0.9mm
  • External Length / Height: 6.4mm
  • External Width: 3.2mm
  • No. of Pins: 2Pins
  • Operating Temperature Max: 170°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +170°C
  • Resistor Mounting: Surface Mount Device
  • Temperature Coeff. +: 75ppm/°C
  • Temperature Coeff. -: 75ppm/°C
  • Tolerance +: 1%
  • Tolerance -: 1%
